Can HDX-MS Validate Small-Molecule Allosteric Binding Sites?

When a discovery team suspects a small molecule acts through an allosteric site, the central decision is not "can we do structure?" but "do we have interpretable evidence of a localized protection footprint and a coherent distal response that justifies orthogonal escalation?" Hydrogen–deuterium exchange mass spectrometry (HDX‑MS) is often the fastest solution‑state route to generate that decision‑ready evidence—if the study is designed for the mechanism question at hand.

Key takeaways

• HDX‑MS can reveal both a localized conformational footprint near a candidate allosteric pocket and distal perturbations that support network‑level mechanisms under matched conditions.
• Use HDX‑MS as a go/no‑go evidence step for allosteric hypotheses; it prioritizes whether mutagenesis plus functional assays should follow.
• Differential uptake patterns are powerful but are not atomic‑contact proof; HDX‑MS alone cannot conclusively assign a residue‑level allosteric binding site.
• Fit‑for‑purpose design—question‑first matrices, occupancy awareness, disciplined controls, and replicates—determines interpretability and confidence.
• Patterns "more consistent with" a localized footprint differ from those suggesting allosteric propagation; recognizing the difference prevents over‑claiming.
• Escalate to orthogonal methods when the claim needs causal confirmation or architecture‑level visualization.

Why Allosteric Binding Is Harder to Validate Than Simple Binding

Allosteric hypotheses live in the space between contact and consequence. A small molecule can bind "somewhere" and yet not modulate the protein through an allosteric pathway. Conversely, a molecule may induce functional change with only subtle or distributed structural footprints that evade single static pictures. That ambiguity is why many teams reach for HDX‑MS: its readout is the protein's exchange kinetics in solution, which report on hydrogen‑bonding and solvent accessibility across regions—local and distal—under carefully matched conditions.

A binding event and an allosteric mechanism are not the same claim

A binding assay confirms that a ligand interacts with the protein. An allosteric mechanism asserts more: that engagement at one site stabilizes or destabilizes networks impacting distant functional regions. Recent studies underscore this distinction. Enzyme systems and viral assemblies have shown co‑occurring local protections adjacent to a modulator pocket and distal changes tens of angstroms away—patterns compatible with long‑range communication rather than simple active‑site occupancy. For examples of localized plus distal HDX‑MS responses supporting allosteric thinking, see the enzyme complex mapped by Zhu and colleagues in 2024 in ACS Central Science and the HBV capsid work by Kant et al. in 2024, both of which illustrate coherent local footprints accompanied by remote changes linked by plausible pathways: Zhu 2024, Hydrogen–Deuterium Exchange Mass Spectrometry Identifies Structural Dynamics of a Radical SAM Enzyme Complex; Kant 2024, Small Molecule Assembly Agonist Alters the Dynamics of Hepatitis B Virus Capsid.

Why dynamic evidence often matters more than a static binding picture

Static structures are invaluable, but allostery is about populations, energetics, and motion. HDX‑MS measures deuterium uptake over time, capturing how local environments and networks breathe in solution. Dynamic protection or deprotection patterns can indicate shifts in hydrogen‑bonding or solvent access that are functionally meaningful—even when a single conformation would miss them. Reviews emphasize that HDX‑MS reports at peptide‑level resolution across the proteome under native‑like conditions, making it well suited to detect ligand‑induced conformational change that complements high‑resolution snapshots. For an overview of HDX‑MS principles and interpretive limits, see Konermann 2024, Hydrogen/Deuterium Exchange Mass Spectrometry.

For readers who want a succinct technique refresher without breaking focus, see the neutral background on HDX‑MS principles and ligand‑induced change in Pronalyse's resources: HDX‑MS and how it works and the principle and application of HDX‑MS for protein structure analysis.

• HDX‑MS method background: HDX‑MS and how it works
• Ligand‑induced conformational change and application context: Hydrogen–deuterium exchange mass spectrometry service

What HDX‑MS Can Reveal in Small‑Molecule Allosteric Studies

HDX‑MS compares uptake between an apo state and a ligand‑bound state under identical buffers, temperature, and additives. The output—differential uptake over overlapping peptides and time points—can attest to both site‑adjacent stabilization and network‑level propagation. The key is coherence: clustered, directionally consistent changes that reproduce across replicates and time scales.

Local protection changes near a candidate allosteric region

When a small molecule engages an allosteric pocket or a pocket adjacent to an allosteric node, HDX‑MS often shows reduced uptake over contiguous, overlapping peptides bracketing that region, especially at early to mid exchange times. This peptide‑level footprint is not residue‑level contact proof, but it is more consistent with localized stabilization than with global state shifts alone. In enzyme and assembly systems, authors have mapped such site‑proximal protections to surfaces that make mechanistic sense—either lining the pocket or clamping neighboring loops that gate communication. See case patterns discussed by Zhu 2024 and Kant 2024. Mapping these localized changes onto available structures or homology models can further test plausibility without over‑interpreting at atomic granularity. For a broader context of protein structure analysis strategies that benefit from HDX‑MS readouts, see Pronalyse's overview page on principles and applications.

• Broader structure analysis context: The principle and application of HDX‑MS in protein structure analysis

Distal perturbations that support a broader conformational mechanism

Allostery seldom ends where it starts. HDX‑MS can reveal distal protections or deprotections in domains or interfaces connected—structurally or functionally—to the candidate pocket. Patterns that recur across replicates and across neighboring peptides, sometimes alternating in sign at different interfaces, are more consistent with energy redistribution along a network than with localized pocket breathing alone. Enzyme‑complex and capsid studies highlight this duality: a tight local footprint plus coherent distal changes that align with known communication pathways or functional hotspots (Zhu 2024; Kant 2024). Work on PTP1B by Woods 2024 and allosteric hotspots in the mycobacterial proteasome by Turner 2025 show how distal responses contextualize mechanism and where mutational tests can probe causality.

EEAT vignette. In one anonymized inquiry, a discovery group asked whether HDX‑MS could help evaluate putative small‑molecule allosteric sites across two protein systems—an enzyme family member and a modular signaling domain—using two independent compounds. At that juncture, the need was not atomistic proof but a fit‑for‑purpose way to determine whether reproducible local footprints and distal responses warranted escalation. The project proceeded with a decision‑first HDX‑MS design and predefined criteria for coherence and reproducibility.

For a neutral technique and service background when discussing ligand‑induced conformational change and allosteric mechanism support, see Pronalyse's HDX‑MS resource.

• Ligand‑induced conformational change context: HDX‑MS service overview

What HDX‑MS Cannot Prove on Its Own

HDX‑MS is powerful precisely because it is solution‑state and comparative. Those same features define its interpretive boundaries.

Why differential deuterium uptake is not equivalent to atomic‑contact proof

Peptide‑level signals average over 5–15 residues; back‑exchange and dynamics blur atomistic detail. A regional protection pattern adjacent to a pocket is more consistent with local engagement but does not prove residue‑level contacts or exclude alternative microstates. Reviews repeatedly emphasize this resolution reality and warn against equating ΔD with direct contacts at the atomic scale. For a clear statement of HDX‑MS's strengths and limits, see Konermann 2024.

When orthogonal evidence becomes important

When a claim requires causal assignment—"this region mediates modulation" rather than "this region responds"—orthogonal evidence becomes essential. The most natural next step is targeted point mutagenesis at HDX‑responsive regions coupled with functional readouts of activity or kinetics; this approach tests whether altering the implicated region perturbs the phenotype. The mycobacterial proteasome hotspot mapping illustrates how mutational tests can support network logic (Turner 2025). Architecture‑level visualization via cryo‑EM or X‑ray is warranted when the project needs state assignments or publication‑grade images but should not displace mutational causality as the primary follow‑up route.

For a brief discussion of escalation to structure for architecture/state confirmation in dynamics questions, see Pronalyse's comparison resource.

• Escalation context: HDX‑MS versus cryo‑EM for epitope mapping and protein dynamics

How to Design an HDX‑MS Study for Allosteric Site Validation

A fit‑for‑purpose HDX‑MS matrix starts with the mechanism question, not the instrument schedule. Decide whether you are primarily testing for a localized footprint, a broader network response, or both. Then build conditions and replication to make the intended inference possible.

Define the mechanistic question before defining the matrix

• If the priority is to test for a site‑adjacent footprint, emphasize early and mid exchange time points, dense peptide coverage around the candidate pocket, and solvents/additives that preserve native‑like conformations. Ensure overlapping peptides across the region to test directional coherence.
• If the priority is to test for network propagation, ensure broad sequence coverage across domains and interfaces with a time series that captures both fast and slower exchanging elements. Predefine a plausibility map linking responsive regions to known functional pathways or interfaces for interpretation.
• If both are of interest, balance coverage: slightly denser mapping around the pocket with sufficient sampling of distal regions known or suspected to communicate functionally. Predefine how you'll score coherence across regions and time points before seeing the data to reduce hindsight bias.

Conditions, controls, replicates, and interpretability considerations

Discipline in comparative design determines whether differential uptake patterns are interpretable or ambiguous.

• Apo versus ligand‑bound states must be strictly matched for buffer composition, pH, ionic strength, temperature, and DMSO content; confirm ligand integrity and solubility to avoid aggregation artifacts.
• Plan occupancy intentionally. Even partial occupancy can yield interpretable patterns in favorable systems, but as occupancy declines, statistical power and replicate consistency become more critical. Consider orthogonal checks of occupancy or binding where feasible, but avoid over‑relying on any single assay.
• Randomize injections and include biological or technical triplicates per state and per time point when possible; apply a hybrid significance framework with multiple‑testing control so that declared changes reflect both magnitude and reproducibility. Reviews and methods articles published in 2024 describe such frameworks in detail, including tool‑supported approaches.
• Aim for broad peptide coverage with overlapping peptides in regions of interest; map ΔD onto sequence and, when available, 3D models for plausibility without over‑claiming atomistic contacts. For general background on how HDX‑MS reads ligand‑induced conformational change in solution, see Pronalyse's service overview.
• Neutral technuiqe context: Hydrogen–deuterium exchange mass spectrometry service

HDX‑MS can support small‑molecule allosteric site validation by revealing both localized protection patterns and broader conformational responses under matched experimental conditions.

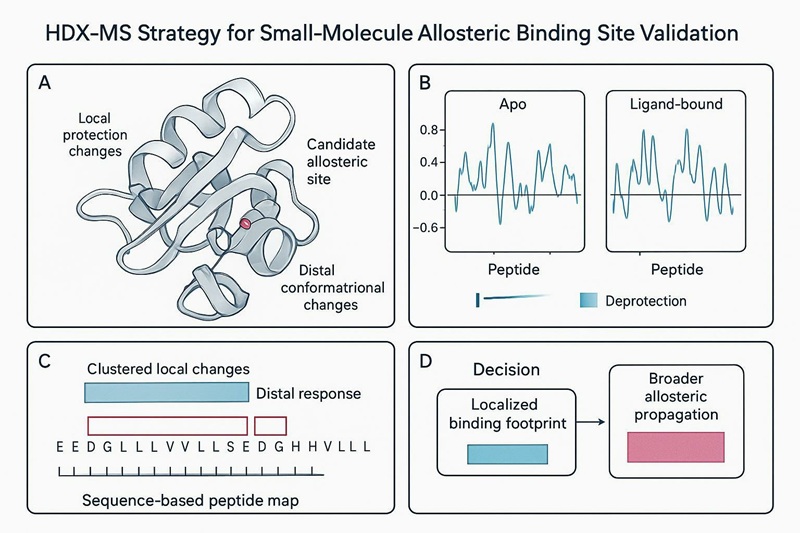

HDX-MS Allosteric Binding Site Patterns to Recognize

Interpreting patterns through a consistent rubric avoids conflating proximity with propagation.

Patterns more consistent with a localized footprint

• Clustered protection across overlapping peptides contiguous to a candidate pocket
• Limited spatial spread beyond the pocket‑adjacent region
• Early‑timepoint effects that persist with coherent directionality across neighboring peptides

Patterns more consistent with allosteric propagation

• Distal changes at functionally connected regions or interfaces, sometimes alternating between protection and deprotection
• Multiple responsive regions that track with known or plausible communication pathways
• Temporal behavior extending into mid or late time points with reproducible directionality across replicates

If you see a mix of both rubrics, that is often what you hope for in an allosteric story; the next question is how to test causality.

A Practical Scenario with Two Proteins and Two Small Molecules

This anonymized, research‑use‑only scenario keeps details at the protein‑class level to preserve confidentiality while illustrating decision logic.

What the initial HDX‑MS phase should aim to answer

• Do we observe reproducible ligand‑induced signals across replicates and time points?
• Do we see a site‑adjacent clustered footprint and a coherent distal response pattern at functionally relevant regions?
• Are the patterns directionally consistent across overlapping peptides and significant under a conservative hybrid test?
• Is the evidence sufficient to prioritize the allosteric hypothesis for orthogonal escalation?

What results would justify orthogonal follow‑up

• Clear, interpretable localized protection near a candidate pocket plus at least one distal region aligned with a known or plausible pathway
• Consistent ΔD direction across overlapping peptides, supported by replicate statistics and multiple‑testing control
• Stable signals under condition repeats and negative controls
• Decision path: proceed to targeted point mutagenesis at responsive regions with activity or kinetics assays; consider architecture‑level visualization later if state confirmation or publication‑grade images are required

For readers exploring multi‑state comparison logic and flexibility assessment in related contexts, see this Pronalyse resource.

• Multi‑state comparison context: Wild‑type versus mutant flexibility comparison by HDX‑MS

When HDX‑MS Is the Right First‑Line Method for Allosteric Questions

Good‑fit scenarios for HDX‑MS‑first studies

• Dynamics‑sensitive systems where solution‑state evidence will drive triage
• Early mechanism screening across multiple candidates or multiple proteins when rapid prioritization is needed
• Programs that require decision‑ready evidence before investing in structure determination

When escalation to orthogonal methods becomes worthwhile

• Architecture‑level visualization is necessary for state assignment or publication narratives
• The project demands stronger site confirmation or causal validation than peptide‑level inferences can supply
• Review gates require mutational causality and functional readouts; structural visualization can follow as needed

For a succinct, neutral primer on HDX‑MS in mechanism contexts—and for allosteric site mapping by HDX‑MS in discovery workflows—see:

• Technique and application background: HDX‑MS and how it works

Conclusion

HDX‑MS does not claim atomistic truth; it delivers solution‑state, comparative evidence about how proteins reorganize when a ligand binds. For small‑molecule allosteric binding site validation, that is precisely the dimension that often matters most. By revealing a localized HDX‑MS conformational footprint alongside distal, network‑level responses—under disciplined, matched conditions—HDX‑MS can generate decision‑ready evidence to prioritize allosteric hypotheses and determine whether orthogonal escalation is warranted. The default escalation path is practical and causal: targeted point mutagenesis at responsive regions paired with activity or kinetics assays; escalate to cryo‑EM or X‑ray only when architecture‑level confirmation is still needed. If your current program is weighing whether an HDX‑MS‑first workflow fits your allosteric mechanism study, a short feasibility review can clarify design, coverage, and decision thresholds.

For neutral background when discussing ligand‑induced conformational change and allosteric mechanism support, see Pronalyse's overview of HDX‑MS services.

• Service context: Hydrogen–deuterium exchange mass spectrometry service

References

1. Zhu, W., et al. Hydrogen–Deuterium Exchange Mass Spectrometry Identifies Structural Dynamics of a Radical SAM Enzyme Complex. ACS Central Science (2024). https://pubs.acs.org/doi/10.1021/acscentsci.3c01023
2. Kant, R., et al. Small Molecule Assembly Agonist Alters the Dynamics of Hepatitis B Virus Capsid. 2024. https://pmc.ncbi.nlm.nih.gov/articles/PMC11505896/
3. Turner, M., et al. Structural basis for allosteric modulation of M. tuberculosis proteasome core particle. Nature Communications (2025). https://pmc.ncbi.nlm.nih.gov/articles/PMC11962144/
4. Woods, V. A., et al. Native dynamics and allosteric responses in PTP1B probed by HDX‑MS. 2024. https://pmc.ncbi.nlm.nih.gov/articles/PMC11129624/
5. Konermann, L. Hydrogen/Deuterium Exchange Mass Spectrometry. 2024. https://pmc.ncbi.nlm.nih.gov/articles/PMC11570944/
6. Stofella, M., et al. Computational Tools for Hydrogen–Deuterium Exchange. Chemical Reviews (2024). https://pubs.acs.org/doi/10.1021/acs.chemrev.4c00438
7. Minshull, T. C., et al. Hydrogen–Deuterium Exchange Mass Spectrometry Reveals… JACS (2024). https://pubs.acs.org/doi/10.1021/jacs.4c11229
