When a team asks whether a mutation truly shifts regional flexibility, stability networks, or binding-competent conformations, the question is not "should we use HDX-MS," but "how do we construct a within-study comparison whose results are interpretable and decision-ready." This article provides a transferable template that turns a biological decision into an HDX-MS experimental matrix, then demonstrates how to phase the work so that a wild-type versus mutant baseline comes first and a ligand or binding partner is added only after the baseline is clear.
Key takeaways
- Begin with the biological decision and translate it into a fit-for-purpose matrix that aligns conditions, time points, replicates, and coverage with the question at hand.
- Enforce strict comparability within the study through matched buffers, temperature, protein concentration, and handling, and plan replicates that support statistical testing.
- Target broad sequence coverage and overlapping peptides, especially around mutation sites and hypothesized allosteric corridors, to support confident regional interpretation.
- Treat differential uptake as evidence of altered dynamics or solvent exposure, not definitive proof of atomic contacts or a single mechanism without orthogonal support.
- Use a phased design that establishes the wild-type versus mutant baseline before introducing ligands or binding partners to avoid confounding variables and sharpen interpretation.
Why Wild-Type vs Mutant HDX-MS Studies Can Reveal More Than Static Structural Comparison
Traditional structures provide architectural snapshots. HDX-MS, run in solution across a time course, tracks backbone amide exchange that reflects solvent exposure and conformational dynamics under matched conditions. For wild type and mutants, that means you can detect localized protection and deprotection patterns that persist even when the global fold looks unchanged. Reviews emphasize these advantages when experimental matrices are rigorously controlled and time-resolved uptake is interpreted with appropriate statistics and visualization, rather than single-time-point anecdotes, as summarized in community recommendations and methodology overviews from 2019 through 2023. See the community recommendations in Nature Methods 2019 and the broad methodology advances in Chem Rev 2021 for design and reporting guardrails that directly inform mutant comparisons.
According to the community recommendations in the 2019 guidance for performing, interpreting, and reporting HDX-MS experiments, comparative studies benefit from multi-timepoint designs, clear replicate definitions, and transparent reporting of uncertainty, which together enable confident region-level calls (Masson et al., Nature Methods 2019). The comprehensive methodology review by James and colleagues highlights repeatability, careful control of back-exchange, and the importance of matched conditions for comparative experiments (James et al., Chemical Reviews 2021). A fundamentals-oriented overview also reinforces low-temperature handling and rigorous time-course planning as central to meaningful comparisons (Vinciauskaite et al., 2023).
Why a mutation may alter dynamics without obviously changing the overall fold
Many mutations nudge conformational ensembles rather than collapse them. Local packing changes can loosen hydrogen-bond networks, shift side-chain rotamers, modulate microenvironments, or perturb salt bridges. Those subtle shifts ripple through solvent exposure and flexibility without requiring architectural rearrangements. HDX-MS is attuned to these regional ensemble changes because it reads out protection and deprotection across a time course under solution conditions.
Why regional flexibility often matters more than a simple structural yes or no answer
Most mutation projects are not seeking a binary verdict on folding. Instead, they ask which segments became more flexible, which tightened, and how those changes map onto functionally relevant regions such as loops in an active site or interfaces that normally engage a partner. A regional lens allows you to judge whether a mutation selectively destabilizes one corridor while sparing the rest, which is often more actionable for protein engineering or mechanism-of-action work than a static, all-or-nothing structural comparison.
Start by Defining the Biological Question Before Defining the HDX-MS Matrix
Before setting time points or protease conditions, write down the exact decision you want the experiment to support. This prevents an attractive but unfocused matrix from generating ambiguous differences that are hard to act upon.
A practical way to structure the decision is to ask three versions of the same question: Are you testing local destabilization near the mutation, long-range network propagation, or binding competence under conditions that resemble biology? Those three emphases lead to different choices in mutant selection, controls, time-point spacing, and coverage targets.
What exactly you are trying to compare
If your goal is local destabilization, prioritize dense coverage with overlapping peptides around the mutation and immediately adjacent elements, and bias early time points to detect fast deprotection. If you suspect long-range allostery, expand coverage into distal pathways and broaden the time window to capture slower, propagated protection. If you are evaluating binding competence, stage the study so the apo baseline is interpretable first; only then add the partner and probe whether the same dynamic network is engaged, tightened, or redistributed.
Why the experimental matrix should be built around the decision
A fit-for-purpose matrix allocates its budget to the question. That may mean fewer mutants but deeper coverage in critical corridors; or a tighter time grid early on to resolve fast changes; or additional labeling replicates to power statistics where effect sizes are subtle. Building the matrix around the decision ensures that when uptake differences emerge, you can map them back to a hypothesis rather than to poorly controlled variables.
For readers who want a brief technical workflow refresher without a primer, a concise overview of exchange, quench, proteolysis, and LC-MS steps is provided here: see the HDX-MS workflow context in the Pronalyse knowledge base under HDX-MS and how it works. This background is useful for aligning matrix choices with operational realities while keeping the focus on comparison design.
Core Experimental Design for an HDX-MS Mutant Comparison
A robust HDX-MS mutant comparison lives or dies by within-study comparability. The following elements are typical considerations used to convert a biological question into a testable matrix for a high-confidence HDX-MS mutant comparison. The phrasing below is intentionally non-prescriptive because every project is context- and protein-dependent.
Conditions, controls, replicates, and exchange time points for protein flexibility analysis
Comparability begins with matched buffers, temperature, protein concentration, labeling time, and handling across wild type and all mutants. Use apo-state baselines to ask the first question cleanly. If later phases are planned, design the initial matrix so the addition of a ligand or binding partner can be layered without breaking comparability.
Plan replicates at the labeling level rather than only at the injection level. Biological or labeling triplicates are often used so that peptide-level differences can be tested with appropriate statistics. Reports emphasize the importance of consistent low-temperature quench and chromatography to limit back-exchange; keeping the LC path near 0–4 °C and using short, reproducible gradients are common practices described in methodology and fundamentals literature (James et al., Chemical Reviews 2021; Vinciauskaite et al., 2023). Time points should span fast, medium, and slow exchange regimes to capture kinetics rather than isolated snapshots; epitope-mapping contexts often illustrate grids that range from tens of seconds to hours to cover the ensemble (Biotechnology Journal 2021 example).
In practice, many labs implement these elements through standardized cold-chain handling, matched buffer preparation, and documented back-exchange controls. For a concise description of such workflow components in a service-style context, see the Pronalyse page on HDX-MS service and workflow practices.

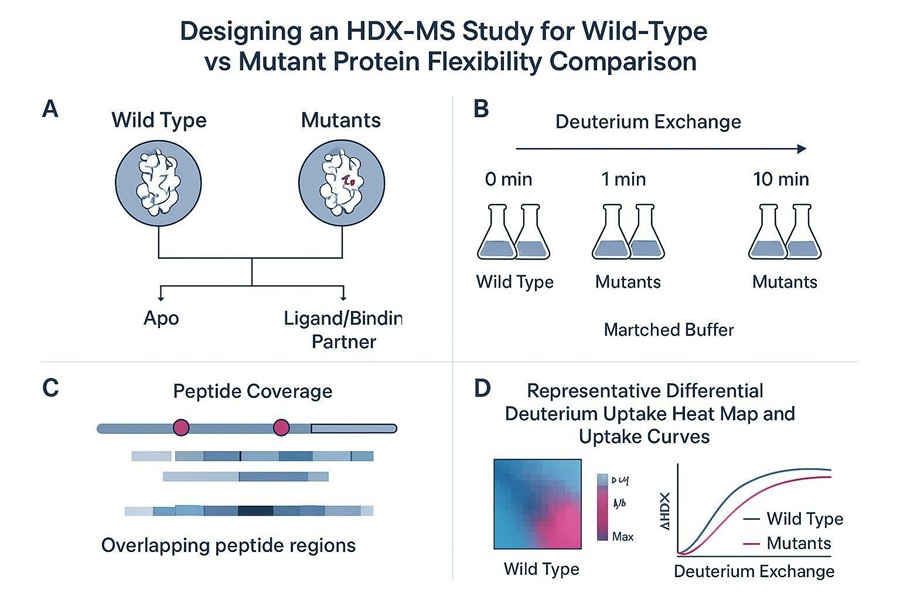

A well-designed HDX-MS mutant comparison study aligns biological questions, matched conditions, time points, and peptide coverage to support interpretable regional flexibility analysis.Sequence coverage, peptide redundancy, and confidence in regional interpretation
HDX-MS reads out at the peptide level for most bottom-up workflows, so data depth determines interpretability. Broad sequence coverage is valuable, but coverage density and overlap are decisive near mutation sites and along suspected allosteric pathways. Overlapping peptides that tile a region provide redundancy, helping you distinguish real regional changes from peptide-specific artifacts and anchoring time-resolved differences in consistent directionality. Community guidance encourages reporting the number of overlapping peptides per segment and visualizing uptake curves side by side for wild type and mutants to reveal consistent shifts across time (Masson et al., Nature Methods 2019).
Interlaboratory studies centered on widely used antibody standards illustrate the ranges of repeatability and reproducibility that contextualize detectable effect sizes for comparative studies. Such benchmarking underscores the value of consistent LC retention, mass accuracy, and well-defined replicate structures in judging minimal detectable differences within a given study design (Yandrofski et al., Journal of Research of NIST 2022).
A Practical Scenario: Comparing Wild Type and Mutants Before Expanding to Binding-Partner Analysis
In one mutation-focused project scenario, a team wanted to compare a ~35 kDa enzyme in wild-type and several mutant forms to determine whether specific regions became more flexible. Rather than introducing all variables at once, a fit-for-purpose design would first establish a matched WT-versus-mutant baseline under apo conditions, define whether the regional differences were reproducible and interpretable, and only then expand the matrix to test whether a binding partner altered the same dynamic network.
Phase 1 establish the wild-type baseline and identify mutant-dependent flexibility shifts
The baseline matrix often prioritizes a manageable number of mutants selected on mechanistic grounds. Matched buffers are prepared for all variants, and the time grid is biased toward early time points if local destabilization is suspected or extended to slower time points if long-range responses are plausible. The coverage plan tilts sequencing effort toward mutation-adjacent elements and corridors that could propagate changes. After data collection, peptide-level differences are evaluated with statistics that respect replicate structure and multiple-timepoint consistency. When reporting, emphasize ΔD with confidence intervals across time points and explain how directionality is conserved across overlapping peptides.
In a neutral, real-world practice example, some laboratories also include cold-path verification and back-exchange checks as part of quality control, which supports within-study comparability and confidence in subtle regional calls. For readers needing a succinct refresher on the operational steps that underpin such matrices, see HDX-MS and how it works for context.
Phase 2 add a binding partner only after the baseline comparison is interpretable
If Phase 1 resolves which segments differ between wild type and mutants and these differences are reproducible, Phase 2 introduces a ligand or binding partner. The question then becomes targeted: does the partner modulate the same dynamic network, compensate for destabilized regions, or recruit new corridors of protection or deprotection? Because the baseline was established under matched conditions, the added variable can be interpreted against a stable reference rather than a moving target.
Framing the expansion this way is compatible with CMC-style thinking about solution-state higher-order structure and comparability. For readers connecting mutant comparisons to broader solution-phase structural assessment under regulatory concepts, see the Pronalyse resource on HDX-MS in HOS characterization aligned to ICH Q6B context.
How to Interpret Differential HDX Data Without Overstating Mechanism
The most valuable mutant comparisons explain what the regional differences are and how confident you are in them, while clearly stating what the data do not prove on their own. Methodology reviews and community recommendations converge on conservative, transparent interpretation and on statistics that emphasize time-resolved consistency over single-time-point hits (Masson et al., Nature Methods 2019; James et al., Chemical Reviews 2021).
What a regional protection or deprotection signal may mean
A protection signal can indicate local stabilization, occlusion by a bound partner, or tightening of a dynamic network that restricts solvent access. Deprotection often reflects increased flexibility, solvent exposure, or a shift in the ensemble toward conformations that exchange more rapidly. When overlapping peptides and adjacent time points tell the same story, confidence grows that the observation reflects a region-level change rather than peptide idiosyncrasies. Primary studies that combine HDX-MS with complementary readouts illustrate these interpretations in practice, for example in enzyme systems where differential uptake and native MS together clarify assembly or interface behavior (Nyíri et al., 2019).
What HDX-MS does not prove by itself in a mutant study
HDX-MS does not directly identify atomic contacts, absolute distances, or a unique mechanism. It reports on solvent accessibility and dynamics. Therefore, using it to "prove" a direct contact change or a single mechanistic path is unwarranted without orthogonal support. Functional assays, targeted mutagenesis, NMR for residue-level mapping, or structural methods that resolve architecture can close the loop when mechanistic specificity is required. An illustrative example from nucleic-acid binding underscores the value of kinetic resolution and orthogonal data to interpret distributed protection patterns in a way that resists overclaiming (Ahmad et al., Nucleic Acids Research 2021).
For statistical practice, consider tests that operate at the peptide and time-point levels, combine effect size and significance, and correct for multiple comparisons when many peptides are evaluated. Recent toolsets propose hybrid approaches that integrate Welch's t-tests with interval logic to surface peptides whose differences are consistent across time, while prior work explored false discovery rate correction to maintain power under multiple testing (HDXBoxeR 2024; MEMHDX 2016).
Common Pitfalls in WT vs Mutant HDX-MS Project Design
Overloading the study with too many mutants or variables too early
It is tempting to test every variant and every possible condition at once. But excessive variables erode statistical power and interpretability. A phased strategy contains the problem: start with the most informative mutants under apo conditions, invest in replicates, coverage, and redundancy, and only then widen the matrix. This approach uses HDX-MS as a decision tool rather than an exploratory fishing expedition.
Underestimating sample quality, comparability, and data interpretation needs
Subtle regional differences demand rigorous sample handling and comparability checks. Confirm stability and homogeneity, verify that buffers are truly matched, and monitor carryover. Build the matrix around early QC runs that test protease choice and gradient length to improve coverage and tiling in mutation-adjacent corridors. Transparent reporting of variability—standard deviations, confidence intervals, and replicate definitions—supports trustworthy decisions. For a broader solution-state structural context that helps situate these practices in regulated development, see the Pronalyse resource that frames HDX-MS within higher-order structure characterization.
When to Expand Beyond WT vs Mutant Comparison
Adding ligands or binding partners after the baseline is clear
Once the baseline resolves reproducible differences, adding a ligand or partner can reveal whether the same corridors are tightened or relaxed and whether compensatory protection emerges elsewhere. Because the baseline was established under matched conditions, the incremental differences attributable to binding can be interpreted against an internal reference instead of confounded by initial variability.
When another structural method may be worth considering
If the objective is architecture-level visualization or residue-level contact mapping, consider complementary methods such as cryo-EM or NMR alongside HDX-MS. These methods address different questions and can validate or refine interpretations drawn from differential uptake. For a perspective on how HDX-MS and cryo-EM can be combined or compared in dynamics-centric projects, see the Pronalyse discussion on HDX-MS versus cryo-EM in dynamics and epitope mapping contexts.
Conclusion
Designing an interpretable HDX-MS mutant comparison is about discipline in framing the biological decision, translating it into a fit-for-purpose matrix, and insisting on comparability and data depth that support regional conclusions. A phased baseline-then-expansion strategy keeps variables under control, enabling confident calls about where flexibility shifts and whether a ligand or partner perturbs the same network. Treat HDX-MS as a solution-state lens on dynamics and solvent exposure, integrate statistics that reward time-consistent signals, and bring in orthogonal methods when the claim requires structural or functional specificity.
Interested in discussing a fit-for-purpose HDX-MS design for your wild-type versus mutant comparison, or exploring whether a phased matrix could de-risk a binding-partner question? You can explore the workflow context and considerations at Pronalyse beginning with this overview of HDX-MS service and design practices.
Author
CAIMEI LI
Senior Scientist at Creative Proteomics
https://www.linkedin.com/in/caimei-li-42843b88/
CAIMEI LI is a Senior Scientist at Creative Proteomics, focusing on protein structural characterization and mass-spectrometry-based analytical strategies for biologics and complex protein interaction studies.
