Proving C-Terminal Integrity: Evidence Levels & QC Benchmarks

Establishing that a protein's C-terminus is truly what you think it is—and proving it in a way that stands up to audit—takes more than high sequence coverage. In practice, "C-terminal integrity" means the terminal residue is correct, the intended processing has occurred (e.g., tag removal or carboxypeptidase trimming), and the heterogeneity at the terminus (clipping, truncation, amidation, glycation, tag loss) is characterized to the degree required by your decision context. The throughline is fit-for-purpose evidence: documented MS/MS localization of the terminal residue, interference controls, and repeatability commensurate with CMC, comparability, or QC needs.

Key takeaways

• Use a tiered, auditable framework—C-terminal integrity evidence levels—to separate supportive indicators from confirmatory proof.
• Generic peptide mapping can under-support terminal claims; require terminal-bracketing fragments, interference checks, and replicates for decision-grade calls.
• For QC/comparability, quantify terminal proteoforms and define acceptance and investigation rules up front; document precision and unresolved regions.
• When peptide-level data are borderline, apply orthogonal tactics (alternative protease, carboxypeptidase laddering) or escalate to intact/top-down strategies.
• Align method validation mindset to ICH Q2(R2)/Q14: specificity, precision, reportable range, robustness, and lifecycle documentation.

Why "C-Terminal Integrity" Needs Explicit Evidence Levels

An "intact C-terminus" is only as strong as the fragments and controls behind it. In day-to-day decisions—clone selection, modality comparability, lot release troubleshooting, or root-cause analysis—teams often lean on coverage% and database matches. Those signals are useful but non-localizing. A terminal claim must be auditable, repeatable, and tailored to its purpose. That means terminal-bracketing ions for localization, sanity checks for co-isolation/neutral loss artifacts, and replicates to separate true biology from preparation artifacts.

Generic peptide mapping frequently under-supports terminal claims because terminal peptides are hard to observe (length, hydrophobicity), fragment poorly, or get overshadowed by matrix components. Without terminal-adjacent fragments, you cannot reliably differentiate a true truncation from a PTM or missed cleavage. A shared "evidence language" prevents overstatement and unifies triage, comparability, and QC workflows.

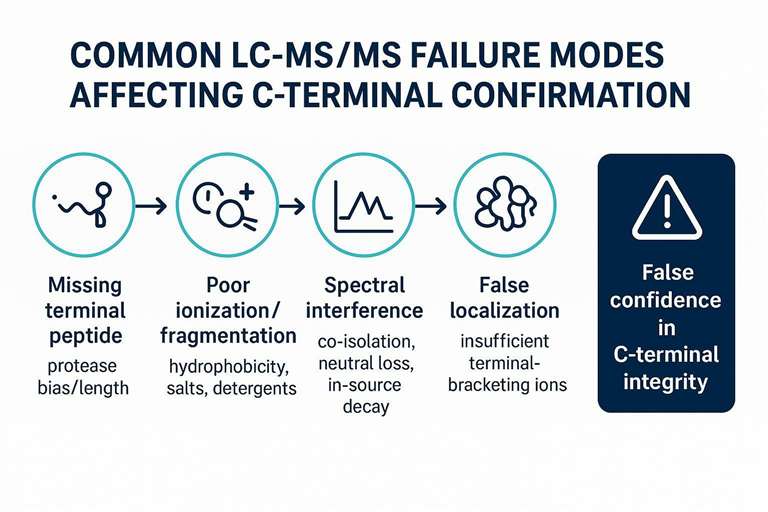

Common Failure Modes That Create False Confidence

Terminal uncertainty typically traces back to a few recurring pitfalls. Enzyme specificity can yield a terminal fragment that is too short or too long to detect; hydrophobic termini and matrix carryover suppress ionization and fragment quality; co-isolated neighbors, in-source decay, and neutral losses complicate spectra; and heterogeneous proteoform mixtures mask or mimic terminal shifts. Coverage% alone won't catch these; terminal-localizing ions and targeted acquisition are your safety net.

Typical analytical pitfalls that weaken or invalidate C-terminal integrity claims.

C-terminal Integrity Evidence Levels: A Tiered Framework

A tiered framework clarifies what counts as supportive vs confirmatory, and what upgrades are needed as decisions get riskier. The levels below map to questions about identity, processing, heterogeneity, and comparability.

Level 0: Indirect Indicators (Not Confirmatory)

Signals include intact mass consistency without terminal localization, global sequence coverage without the terminal peptide, and database matches lacking terminal-bracketing ions. Useful for reconnaissance—insufficient for decisions.

Level 1: Putative C-Terminus (Screening-Grade)

You observe the terminal peptide, but fragmentation is weak or ambiguous; interference evaluation is limited; evidence is single-replicate. This is adequate for triage but not for high-stakes comparability. If internal data remain borderline, plan a confirmatory path using expert workflows such as N/C-terminal sequencing when moving toward decisions.

Level 2: Confirmed Residue and Localization (Decision-Grade)

This level requires a clear MS/MS ion series that brackets the terminal residue and rules out missed-cleavage artifacts, with replicates and basic orthogonal checks (e.g., an alternative protease or carboxypeptidase trimming). Where in-house capacity is constrained, a pragmatic route is to use specialized N/C-terminal sequencing support to tighten localization and document search/score settings. See Biopharmaceutical N/C-Terminal Sequencing Service for context: N/C-terminal sequencing for biopharmaceuticals.

Level 3: Quantified Proteoform Integrity (QC-Grade)

Here you quantify terminal proteoforms (e.g., truncation ladders, clipping, tag loss) under defined reporting rules, with precision criteria and acceptance thresholds aligned to use case. When microheterogeneity or co-occurring PTMs confound peptide-level localization, add proteoform-resolving strategies such as Top-Down Protein Sequencing. For variant attribution (modification vs truncation), pair peptide/intact data with targeted PTM investigations via Protein Post-Translational Modification Analysis Services.

Minimum Evidence Requirements (Recommended)

The table below turns the evidence levels into auditable "minimum package" expectations. These are best-practice recommendations (not a regulatory mandate) and should be finalized as method-established targets for your molecule and risk context.

QC Benchmarks That Make C-Terminal Claims Audit-Friendly

Decision-grade and QC-grade terminal calls benefit from shared minimums. Require terminal-adjacent fragments with high mass accuracy and explicit ion-series annotation; document co-isolation checks and spectral cleanliness; confirm with technical replicates and, when quantifying variants, preparation replicates. Include a positive control (known terminus) and a process blank where appropriate. Report exactly what was searched and confirmed, plus any unresolved regions and next steps (e.g., escalate to top-down or add carboxypeptidase validation). These steps amount to audit-ready MS/MS evidence for C-terminus claims without overreliance on coverage%.

System Suitability and Decision Rules (QC-minded)

Before you interpret a terminal call as "real biology," define (and document) basic system-suitability expectations for your workflow—mass accuracy performance, LC stability for terminal peptides, carryover/blank behavior, and a control material with a known C-terminus or known terminal-variant distribution.

Equally important, pre-specify a simple decision rule for when results are provisional. For example: if interference checks fail or replicate precision misses a method-established target, report the outcome as provisional and escalate to orthogonal confirmation rather than forcing a definitive claim.

QC Decision Rules for Terminal Variants (Recommended)

Practical Decision Table: Evidence Level vs Method Fit

For specialized confirmation workflows, plan ahead for Level 2 with biopharmaceutical N/C-terminal sequencing. For proteoform-level resolution, leverage top-down protein sequencing when peptide-level localization is insufficient.

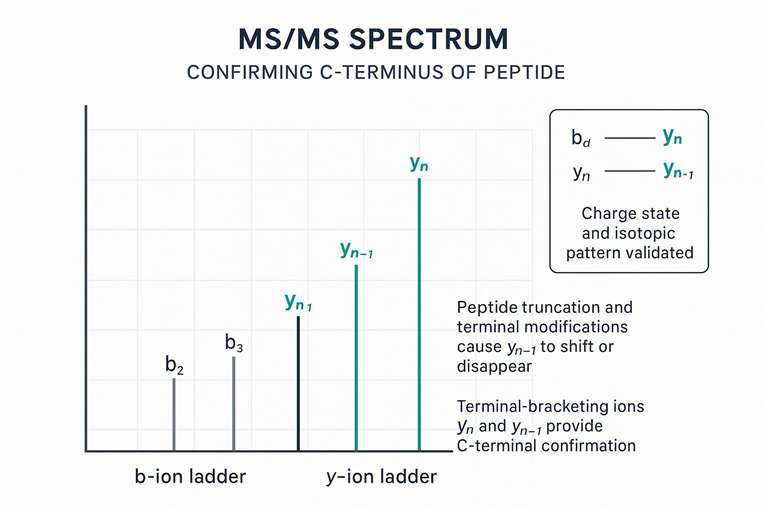

What "Good MS/MS Evidence" Looks Like for the C-Terminus

Good evidence moves beyond detection to proof. Expect fragment ions that bracket the terminal residue so you're localizing the end, not inferring it from internal fragments. Confirm that the observed end isn't a missed cleavage artifact by considering alternative protease data or stepwise carboxypeptidase trimming. Evaluate PTMs that can mimic truncation (dehydration, deamidation, pyroglutamate, amidation) and choose fragmentation that preserves labile features when relevant. Sanity checks—charge state consistency and isotopic pattern—help spot co-isolated neighbors and in-source decay.

Terminal-confirming fragments are the difference between "detected" and "proven."

Benchmarks for Quantitation and Comparability

Quantitation begins by defining the signal and the denominator. For terminal variants monitored by peptide mapping, use consistent extracted-ion chromatogram (XIC) windows and document integration boundaries. Normalize variant signals within a family (e.g., relative % across truncation ladder members of the same proteoform family). Set repeatability expectations based on method performance, then apply comparability logic that distinguishes "no meaningful change" from "a shift in terminal heterogeneity." When stakes are high or transfer is planned, standardize reporting and evidence packages; if peptide-level localization remains equivocal, escalate to Top-Down Protein Sequencing and investigate attribution with PTM analysis workflows. In short, these are QC benchmarks for C-terminal sequencing programs that need to stand up in audits.

Worked example (conceptual): Suppose a C-terminal truncation ladder yields three peptide variants with integrated areas A, B, and C. Report each as % of the sum (A+B+C) within that terminal family, include technical replicate %RSD, and note any co-elution flags. If the %RSD exceeds your pre-set precision limit or if interference checks fail, mark the result as provisional pending re-acquisition or orthogonal data.

Case Patterns: How Evidence Levels Apply in Biopharma

• Truncation across lots: Use terminal-bracketing fragments to confirm each ladder member, then quantify relative distributions with replicate precision. For process changes, interpret shifts in the ladder as comparability signals rather than single-point anomalies. This supports C-terminal truncation and clipping quantification in a way that translates into lot-to-lot reviews.
• Tag loss confirmation: Demonstrate absence of tag with terminal-localizing fragments and rule out degradation artifacts via preparation replicates or stability holds. If ambiguity persists, confirm at the proteoform level with intact/top-down.
• Heterogeneity attribution: Distinguish enzymatic clipping from chemical modification or handling artifacts by combining targeted peptide MS/MS with intact/top-down and directed PTM analysis—an orthogonal validation for C-terminal integrity that closes ambiguity loops.

For concept overviews that connect N- and C-termini in integrity programs, see this resource: Integrating N- and C-Terminal Sequencing for Protein Integrity. For general background on why sequencing matters in development, review Protein Sequencing: Significance and Applications.

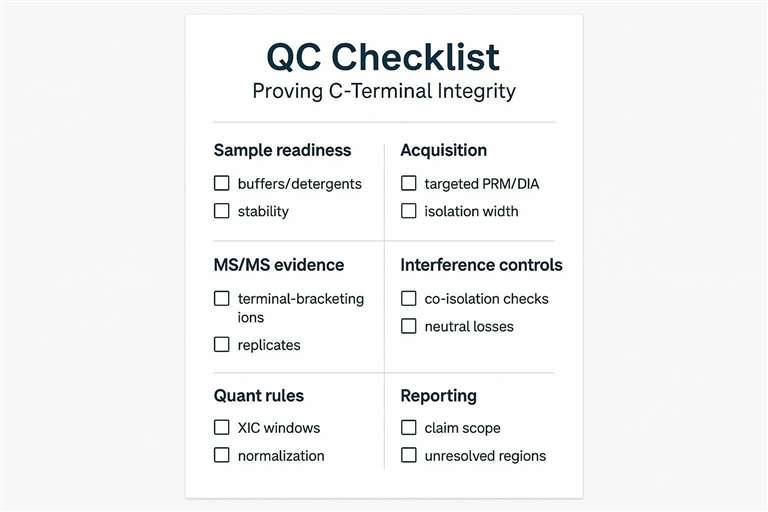

Method Design Checklist for Stronger C-Terminal Proof

Design choices determine whether the terminal is observable and confirmable. Select proteases that yield an observable terminal peptide rather than "terminally invisible" digests; consider terminal enrichment or targeted acquisition when sensitivity is limiting; use chromatography that separates near-isobaric terminal variants; tune fragmentation to enhance terminal-informative ions; and set sample handling guardrails to avoid artifactual clipping or degradation.

A practical checklist to align teams on what "proven C-terminus" requires.

If you need a submission-ready handoff, align your buffers, detergents, and stability plan with a vendor's sample criteria before shipment. For context on typical workflows and requirements, see our biopharmaceutical N/C-terminal sequencing service —it can help de-risk terminal observability and downstream MS/MS evidence capture.

Reporting Template: What to Include in an Evidence Package

An audit-friendly package states exactly what is being claimed (identity vs processing vs quantitation), assigns an evidence level with rationale, and collates key spectra/chromatograms. Include a variant table with quant rules and thresholds, and list limitations and unresolved regions with next steps (e.g., orthogonal validation or escalation to top-down).

Example Variant Summary Table for Customer-Facing Reports

FAQs

What is the minimum evidence to claim a confirmed C-terminus?

A confirmed C-terminus requires terminal-bracketing evidence (MS/MS ions that include and directly bracket the terminal residue) plus documented interference checks and replicate support.

• Why: overall coverage and database matches don't localize the terminal residue.
• What to do next: predefine Level 2 acceptance elements (localization, interference, replicates), and escalate to an orthogonal check (alternative protease or carboxypeptidase trimming) when ambiguity remains.

What counts as "proof" of the C-terminus in LC-MS/MS?

"Proof" means you can localize the end, not just detect a peptide.

• Why: terminal peptides are prone to weak fragmentation and co-isolation artifacts.
• What to do next: require terminal-bracketing ions, review precursor purity/co-elution, and confirm with technical replicates before making a decision-grade claim.

Why can sequence coverage still miss or miscall the C-terminus?

Because coverage metrics are biased toward internal peptides and don't guarantee terminal localization.

• Why: terminal peptides can be too short/long, too hydrophobic, suppressed by matrix, or ambiguous due to missed cleavage.
• What to do next: use a protease strategy that yields an observable terminal peptide and consider targeted acquisition (e.g., PRM/DIA) for terminal confirmation.

How do I distinguish truncation from a PTM that mimics truncation?

You generally need orthogonal evidence because the same mass shift can fit multiple explanations.

• Why: deamidation, dehydration, and amidation can mimic apparent residue loss at the terminus.
• What to do next: adjust fragmentation (e.g., ETD/EThcD when appropriate), tighten the search space, and corroborate attribution using intact/top-down and targeted PTM investigations when peptide-level localization is equivocal.

When should I use top-down approaches for C-terminal integrity?

Use top-down when you need proteoform-level resolution or when peptide-level localization remains equivocal after targeted optimization.

• Why: intact/top-down preserves combinatorial PTMs and terminal heterogeneity that peptide mapping can fragment into ambiguous pieces.
• What to do next: treat top-down as an escalation pathway for Level 3 QC-grade claims and comparability questions.

Can I claim "no truncation" if I don't detect truncation peptides?

No—absence of detection is not evidence of absence.

• Why: terminal variants can sit below your reportable capability or be masked by interference and method blind spots.
• What to do next: state the achieved evidence level, define reportable capability, and escalate to targeted acquisition or orthogonal methods if the risk context demands it.

Document status and intended use

This article is best-practice guidance for planning and documenting evidence for C-terminal integrity in biopharmaceutical analytics. It is not a substitute for a validated SOP or a regulatory requirement. Evidence levels, decision rules, and any numeric targets should be finalized as method-established criteria appropriate to the molecule, matrix, and risk context.

References

1. Olsen, J. V., Macek, B., Lange, O., Makarov, A., Horning, S., Mann, M. Higher-energy C-trap dissociation for peptide modification analysis. Nature Methods 4(9) (2007): 709–712. https://doi.org/10.1038/nmeth1060
2. Aebersold, R., Mann, M. Mass-spectrometric exploration of proteome structure and function. Nature 537(7620) (2016): 347–355. https://doi.org/10.1038/nature19949
3. Toby, T. K., Fornelli, L., Kelleher, N. L. Progress in top-down proteomics and the analysis of proteoforms. Annual Review of Analytical Chemistry 9 (2016): 499–519. https://doi.org/10.1146/annurev-anchem-071015-041550
4. Smith, L. M., Kelleher, N. L. Proteoforms as the next proteomics currency. Science 359(6380) (2018): 1106–1107. https://doi.org/10.1126/science.aat1884
