mAb C-Terminal Lysine Clipping: MS Detection & Quantitation

C-terminal lysine residues on IgG heavy chains are routinely processed, creating 0K/1K/2K proteoforms that influence charge-variant profiles and sometimes confound comparability. The hard part isn't proving they exist—it's measuring them accurately, reporting them consistently, and comparing them across lots without analysis-driven differences. This guide lays out practical MS workflows, defensible terminal-peptide evidence criteria, and quantitation rules that hold up in cross-team reviews.

Key takeaways

• Treat c-terminal lysine clipping as a mixture problem: screen at intact/subunit level, localize with terminal peptides, and quantify with fixed rules.
• Lock integration and normalization rules before comparing lots; otherwise, you'll create artificial shifts.
• Use CpB controls and terminal-confirming ions to attribute charge-variant changes specifically to lysine states.
• Escalate to proteoform-aware strategies (including top-down) when peptide evidence is ambiguous.
• Report with conservative language: distinguish "not observed" from "below quantitation threshold."

Why C-Terminal Lysine Clipping Matters in mAbs

C-terminal lysine variants are a common driver of antibody heterogeneity and frequently map to basic charge-variant peaks. Small shifts in the distribution of 0K/1K/2K states can affect lot-to-lot comparability, especially when charge-variant readouts reflect multiple contributors. Make a clear distinction between simply detecting lysine variants and actually quantifying clipping levels in a way that remains stable across methods and time.

When terminal confirmation becomes a decision blocker, a dedicated workflow such as Protein C-terminal confirmation helps anchor evidence. For an escalation-ready option that focuses on terminal residues, see the overview of the Protein C-Terminal Sequencing approach.

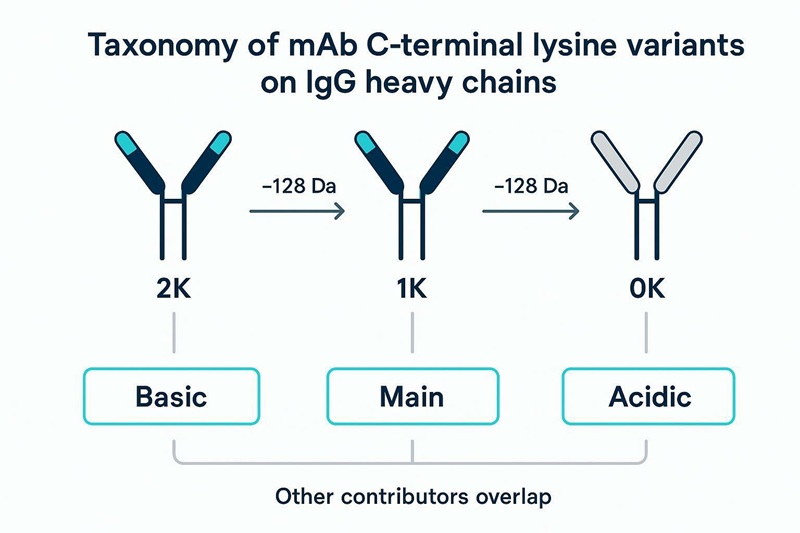

C-terminal lysine states often translate into measurable charge-variant heterogeneity.

What "Lysine Clipping" Looks Like Across Analytical Readouts

• Intact/near-intact signals: Expect mass or envelope shifts of ~−128 Da per clipped Lys, often co-varying with charge-variant fractions.
• Peptide-level signals: The terminal peptide localizes the exact terminal residue state, but observability can be limited by peptide chemistry and interferences.
• Charge-variant context: Correlation patterns help, but basic/acidic profiles include contributors beyond Lys retention/loss; rely on MS to attribute causes.
• Proteoform clarity needs: When mixtures complicate interpretation, proteoform-aware strategies such as Top-Down Protein Sequencing provide direct, whole-molecule context.

Mechanisms and Drivers of C-Terminal Lysine Variants

• Enzymatic processing during expression or downstream processing changes the prevalence of Lys retention.
• Process-condition sensitivity: harvest, purification, hold times, pH, and temperature can shift distributions.
• Storage/stress contributions: stability studies and shipping conditions can subtly bias apparent clipping.
• Confounders that mimic clipping: terminal-adjacent PTMs, glycation, and handling artifacts can resemble Lys effects in charge-variant assays.

MS Detection Strategies for C-Terminal Lysine Clipping

Think in four moves: Screen → Localize → Quantify → Escalate.

• Intact-level screening to flag presence and relative direction of change. Combine with a CpB control to collapse basic species and confirm Lys attribution.
• Middle-down/subunit mapping (e.g., IdeS/IdeZ) to reduce complexity while retaining terminal context.
• Bottom-up targeted confirmation using terminal peptide localization and MS/MS evidence.

Escalation decision tree for ambiguous 0K/1K/2K calls

Use this routing logic to keep comparability decisions consistent when evidence quality changes run-to-run:

• If intact/subunit MS shows −128 Da steps but the terminal peptide is missing: treat the peptide result as not observable (not "0K"), try an alternative enzyme to generate a more MS-friendly C-terminal peptide (e.g., Glu-C or Asp-N), and keep the intact/subunit distribution as the primary quantitative readout.
• If the terminal peptide is present but MS/MS is crowded or co-isolated: tighten isolation windows, confirm with CpB-treated material, and require terminal-localizing y-ions before calling 0K vs 1K.
• If charge-variant fractions shift but intact/subunit masses do not: assume the charge shift may be driven by non-Lys contributors (e.g., glycation/deamidation) until MS evidence supports a lysine-state change.
• If 0K/1K/2K states overlap with other proteoforms (glycoforms/PTMs) and quantitation becomes model-dependent: escalate to proteoform-aware intact methods or top-down so the lysine state is assigned in whole-molecule context.
• If cross-lot conclusions change after re-processing: stop trending, lock integration/normalization rules (RT windows, peak boundaries, deconvolution settings), and re-run the entire lot set under the frozen method.

Targeted LC-MS/MS for Terminal Peptide Evidence

• Terminal peptide design: Ensure coverage truly reaches the C-terminus; consider alternative enzymes (e.g., Glu-C, Asp-N, Lys-N/Lys-C) if tryptic peptides are suboptimal.
• Fragment requirements: Require terminal-confirming y-ions that discriminate 0K vs 1K states (e.g., y1 consistent with the terminal residue). Use ≥3 corroborating y-ions including terminal-adjacent positions.
• Interference controls: Guard against co-isolation risk, coelution, and spectral clutter; verify with CpB-treated material and orthogonal readouts.

Proteoform-Level Confirmation When Variants Co-Exist

When multiple lysine states overlap or peptide-level evidence is weak, separate and assign proteoforms directly. Whole-molecule analysis via Top-Down Protein Sequencing can confirm terminal truncation/processing in a single readout.

Quantitation: Turning Detection Into Reportable Clipping Levels

• Define the quantitation question: per heavy chain, per antibody, or per charge-variant fraction.
• Use consistent integration rules across lots to avoid analysis-driven differences: fix RT windows, smoothing, and deconvolution/XIC settings upfront.
• Normalize appropriately for comparability: choose within-family % vs global % and use it consistently.
• Reporting language: explicitly state "not observed" vs "below quantitation threshold" for transparency.

Integration & Normalization Rules Template

Use this as a "frozen" template across lots (and across analysts) so your 0K/1K/2K distribution doesn't drift because the processing did.

Quantitation Pitfalls That Inflate or Hide Lysine Variants

Mini case example: how fixed rules prevent an "analysis-driven" lot shift

Scenario (anonymized): An analytical team compared three development lots and saw a higher "basic" region by CEX in Lot 3. Intact MS also suggested more +128 Da species (putatively higher 1K/2K). However, the C-terminal tryptic peptide was weak in Lot 3 and one analyst manually widened the XIC RT window to "recover signal."

What we did: We (1) added a CpB-treated control to confirm that the +128 Da species collapsed as expected, (2) reprocessed all lots using a frozen RT window and fixed deconvolution/XIC settings, and (3) reported the terminal peptide as not observable in Lot 3 rather than interpreting it as "0K."

Outcome: The apparent jump in 1K/2K was reduced to a small, replicate-consistent shift that matched intact/subunit evidence. The team documented an escalation trigger: when the terminal peptide fails observability criteria, intact/subunit (or proteoform-aware/top-down) becomes the primary quantitation basis for lot trending.

• Shared-peptide ambiguity and cofragmentation artifacts.
• Ionization suppression from buffers/detergents or co-eluting species.
• Inconsistent peak picking and integration boundaries across runs.
• Uncontrolled sample handling that changes clipping during prep or shipping.

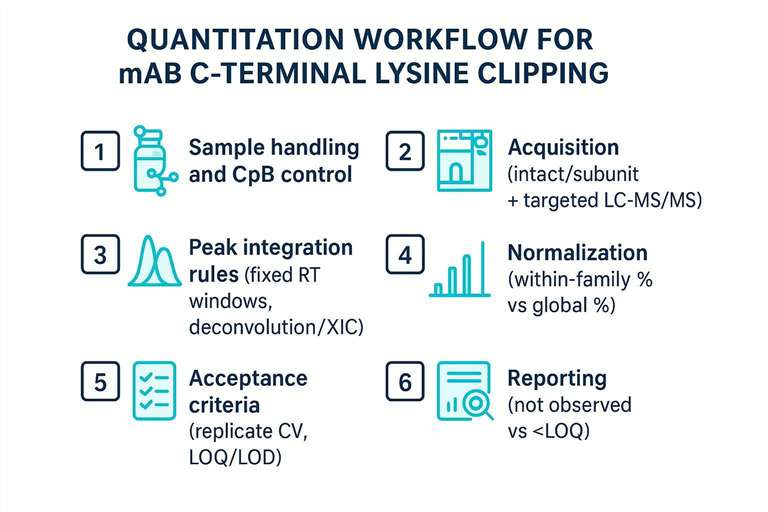

A repeatable quantitation workflow reduces false comparability signals.

Method Selection Table: Best-Fit Approach by Decision Need

• For cross-program consistency, consider an end-to-end Protein Sequencing Service.
• For terminal-specific confirmation, see Protein C-Terminal Sequencing.

Acceptance Criteria and Comparability Language (Biopharma-Ready, Non-Regulatory)

• Define what counts as a meaningful shift in lysine clipping distribution for your program, and align before trending.
• Require replicate consistency and stable integration rules before calling a lot difference.
• Document limitations when terminal peptides are not observable or spectra are interfered; rely on intact/subunit or top-down evidence in those cases.
• Place lysine clipping in the broader context of truncation/tag loss/heterogeneity in internal guidance and reports.

Sample Handling and Submission Factors That Bias Lysine Clipping

• Cold-chain and hold-time controls reduce artifactual processing.
• Buffer and detergent compatibility preserves MS sensitivity.
• Stability and shipping guardrails keep datasets comparability-ready.
• Align to an operational checklist covering enzyme controls (e.g., CpB), storage, and matrix consistency.

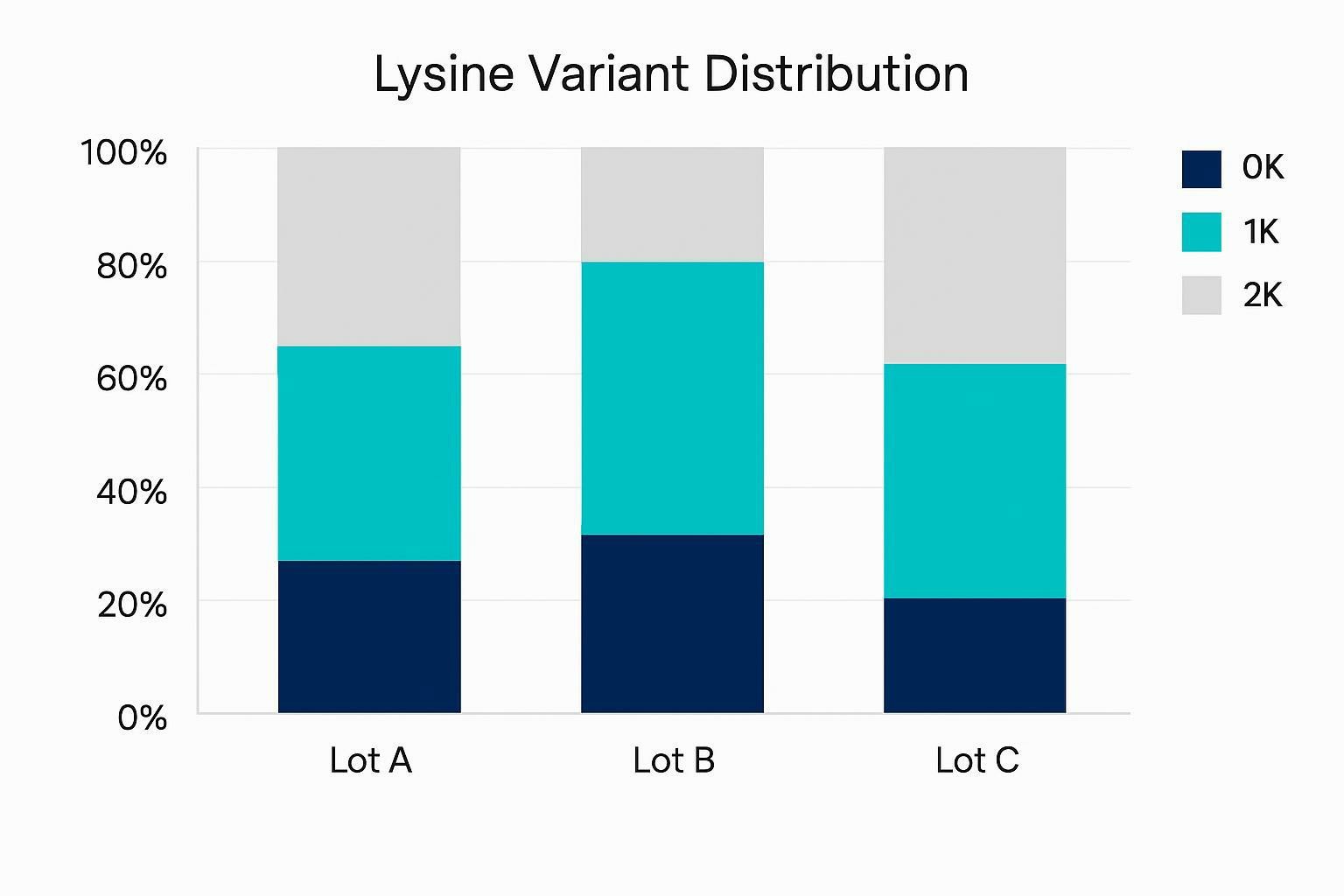

Comparability is often assessed as distribution shifts across 0K/1K/2K states.

Reporting Outputs: What a Good Lysine Clipping Deliverable Includes

• Variant distribution table (0K/1K/2K) with explicit quantitation rules.
• Representative terminal-confirming MS/MS evidence for each called state.
• Lot-to-lot comparability view using identical processing and thresholds.
• Clear statements of uncertainty: interference, observability limits, out-of-scope variants.

Variant Summary Table Template for Customer-Facing Reports

FAQs

What is C-terminal lysine clipping in monoclonal antibodies?

C-terminal lysine clipping is enzymatic or process-associated removal of terminal lysine residues on mAb heavy chains, creating 0K/1K/2K lysine variants.

How do I detect lysine variants by mass spectrometry?

Use intact/subunit MS for screening and targeted LC-MS/MS terminal peptide evidence for confirmation of the terminal residue state.

Can I quantify 0K/1K/2K distributions reliably across lots?

Yes—if you fix integration and normalization rules, include replicates, and document observability limits when terminal peptides are weak or interfered.

Why do charge variants sometimes disagree with MS-based lysine clipping results?

Because charge-variant profiles can reflect multiple contributors besides lysine states; direct MS evidence is needed to attribute changes to C-terminal lysine variants.

When should I use top-down approaches for lysine clipping comparability?

Use top-down when mixed proteoforms overlap at the peptide level or when you need proteoform-level distribution estimates that remain stable across lot comparisons.

References

1. Di Marco F, et al. Simultaneous Monitoring of Monoclonal Antibody Variants by SCX-HPLC-MS (2021). https://pmc.ncbi.nlm.nih.gov/articles/PMC8396523/
2. Legrand P, et al. Structural identification and absolute quantification of mAbs by CE and LC–MS/MS (2022). https://pmc.ncbi.nlm.nih.gov/articles/PMC8802745/
3. Evans AR, et al. Targeted CQA analytical control strategy for commercial biotherapeutics (2024). https://pmc.ncbi.nlm.nih.gov/articles/PMC11042060/
4. Shi RL, et al. Characterization of therapeutic proteins by cation exchange chromatography (2020). https://pmc.ncbi.nlm.nih.gov/articles/PMC7188404/
5. Wadhwa M, et al. WHO consultation on revision of guidelines on evaluation of monoclonal antibodies as SBPs (2022). https://pmc.ncbi.nlm.nih.gov/articles/PMC9109723/
6. Liu AP, et al. 18O-Labeling Assisted LC–MS Method for Accurate Quantitation of Unprocessed C-Terminal Lysine in Therapeutic mAbs (2022). https://pubs.acs.org/doi/10.1021/acs.analchem.2c00707
