Co-Immunoprecipitation (Co-IP) Strategies for Protein-Protein Interactions Analysis

Introduction to Co-Immunoprecipitation (Co-IP) Techniques

Protein-protein interactions (PPIs) are central to nearly all cellular processes, including signal transduction, transcriptional regulation, and immune responses. Co-IP remains one of the most widely used and reliable techniques for identifying and validating such interactions under near-physiological conditions. This antibody-dependent method allows the selective enrichment of protein complexes from cellular lysates, enabling researchers to study stable and biologically relevant interactions.

Fundamental Principles of Co-IP

Antibody-Antigen Binding

Antibodies serve as the capture reagent in Co-IP. High-affinity antibodies ensure robust binding. Monoclonal antibodies confer exquisite specificity. Polyclonal antibodies provide broad epitope recognition. Researchers must validate antibody affinity using enzyme-linked immunosorbent assay (ELISA) or surface plasmon resonance (SPR). The choice of antibody influences background noise and yield.

Protein Complex Capture

Bead-based matrices anchor antibody-antigen complexes. Common matrices include agarose and magnetic beads. Agarose beads offer high binding capacity. Magnetic beads simplify wash and elution steps. Beads functionalized with Protein A or Protein G bind the Fc region of antibodies. Researchers select Protein A or G based on species and isotype of the antibody. The matrix choice impacts recovery and purity.

Lysis Buffer Composition and Protein Solubilization

Lysis buffer composition governs protein solubilization and interaction preservation. Researchers employ non-ionic detergents such as NP-40 or Triton X-100. These detergents maintain native conformations. Salt concentration modulates stringency. Low salt preserves weak interactions. High salt disrupts non-specific binding. Protease inhibitors prevent proteolysis. Phosphatase inhibitors maintain post-translational modifications.

Experimental Design and Workflow for Co-IP Assays

Endogenous vs. Overexpressed Interactors

Endogenous Co-IP preserves native expression levels. This approach yields physiologically relevant data. Overexpression systems amplify signal. Researchers transfect constructs bearing epitope tags. Tag overexpression may induce artifactual interactions. Careful controls mitigate this risk. Validation in an endogenous context remains advisable.

Construct Design and Epitope Tag Selection

Constructs bearing epitope tags facilitate detection. Common tags include Flag, HA, and Myc. The flag tag comprises eight amino acids (DYKDDDDK). HA tag derives from haemagglutinin. Myc tag originates from the avian myelocytomatosis virus. Position tags at the N- or C-terminus. The choice depends on protein topology. Tag placement must not impede protein folding or function.

Standard Co-IP Workflow

The standard workflow comprises cell lysis, pre-clearing, immunoprecipitation, wash, elution, and analysis.

• Cell Lysis: Cells undergo lysis under cold conditions.
• Pre-clearing: Lysate incubates with control beads to reduce non-specific binding.
• Immunoprecipitation: Antibody-coated beads incubate with lysate.
• Wash: Multiple washes remove non-specific proteins.
• Elution: Bound proteins elute under denaturing or competitive conditions.
• Analysis: Eluate proceeds to downstream assays.

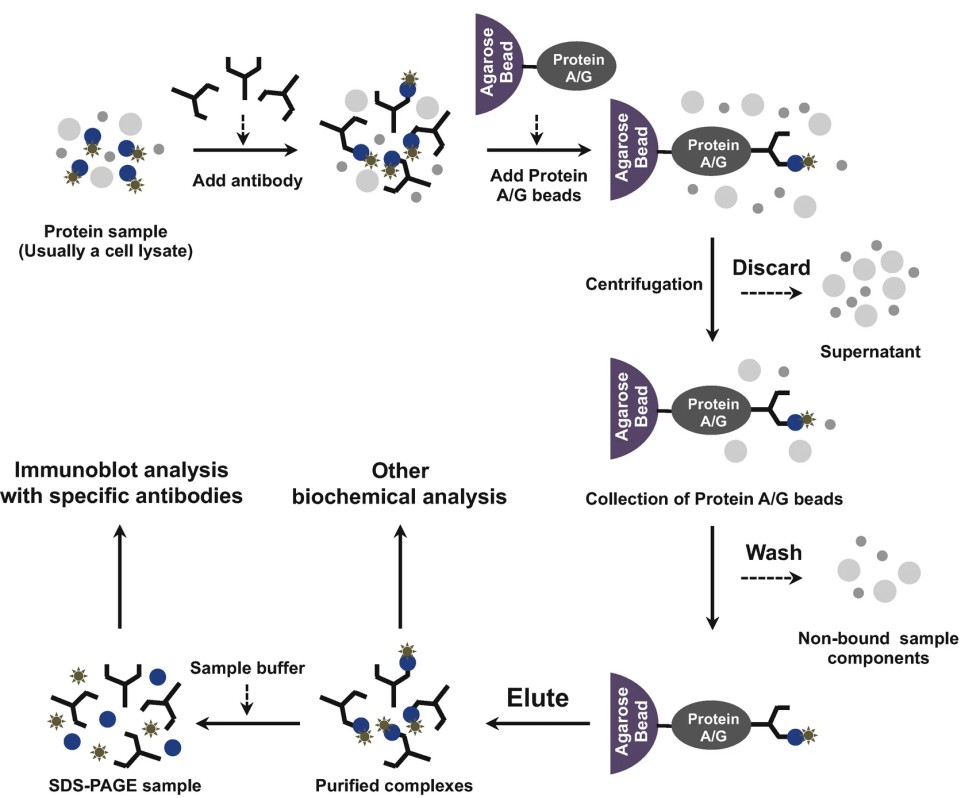

Figure 1. Schematic diagram of principle of co-IP (Lin J S, et al., 2017).

Detection and Verification of Co-IP Results

Western Blot Analysis: Antibody Selection and Signal Detection

Western blot remains the most common detection method. Primary antibodies target the prey protein. Secondary antibodies conjugated to horseradish peroxidase facilitate chemiluminescent detection. Researchers optimize antibody concentration to enhance signal-to-noise ratio. Control lanes include input lysate and isotype antibody immunoprecipitation.

Silver Staining and Coomassie Blue for Visualization of Pulled-Down Complexes

Silver staining offers high sensitivity for protein bands. Coomassie Blue staining provides rapid visualization. These dyes reveal total protein profiles. Researchers compare stained patterns between experimental and control immunoprecipitations. Unique bands warrant further analysis by mass spectrometry.

Mass Spectrometry Approaches for Unbiased Interactome Mapping

Mass spectrometry (MS) enables global identification of binding partners. Researchers digest eluates with trypsin. Liquid chromatography coupled to tandem MS (LC-MS/MS). Database searches match peptide spectra to protein sequences. This unbiased approach uncovers novel interactors.

Reciprocal Co-IP and Reverse Validation Strategies

Reciprocal Co-IP involves immunoprecipitation of the prey protein. The original "bait" appears in the eluate. Reciprocal validation confirms specificity. Orthogonal methods such as pull-down assays or proximity ligation assays further substantiate findings.

Quantitative Co-IP Techniques for Comparative Interaction Analysis

SILAC-Based Quantitative Co-IP for Differential Interactome Profiling

Stable isotope labeling by amino acids in cell culture (SILAC) introduces heavy isotopes into cellular proteins. Grow parallel cultures in "light" and "heavy" media. Co-IP performed on both conditions yields differential binding profiles. MS quantifies isotopic ratios to discern changes in interaction strength.

Label-Free Quantitative Mass Spectrometry in Co-IP Workflows

Label-free quantitation employs peak intensity or spectral counting. Researchers compare peptide abundances across samples. This method avoids isotopic labeling. It permits analysis of primary tissues where labeling proves impractical.

TMT and iTRAQ Multiplexing Strategies for High-Throughput Co-IP

Tandem mass tags (TMT) and isobaric tags for relative and absolute quantitation (iTRAQ) enable multiplexing. Each sample receives a distinct isobaric label. Multiplexed samples combine into a single MS run. Relative quantitation arises from reporter ion intensities. Multiplexing increases throughput and consistency.

Difference Between Immunoprecipitation (IP) and Co-IP

Integration of Co-IP with Orthogonal PPI Techniques

Complementary Validation with Yeast Two-Hybrid (Y2H) Screening

Y2H is a widely used genetic approach to validate binary interactions initially identified by Co-IP. Y2H reveals direct physical interactions by reconstituting a transcription factor in yeast. Although it lacks cellular context and may produce false positives due to protein overexpression, it is particularly useful for confirming specific domain-mediated interactions.

Pull-Down Assay Comparison: Affinity Tag-Based vs. Antibody-Based

Pull-down assays offer an alternative biochemical validation strategy. These assays utilize recombinant, affinity-tagged proteins immobilized on beads to capture potential binding partners. Unlike Co-IP, pull-downs avoid reliance on antibodies and allow analysis of direct interactions under defined in vitro conditions, although they lack the complexity of cellular environments.

Bimolecular Fluorescence Complementation (BiFC) for Live-Cell Visualization

BiFC provides live-cell visualization of PPIs by fusing proteins of interest into complementary fragments of a fluorescent protein. Interaction between the proteins restores fluorescence, enabling spatial and temporal resolution of the interaction in vivo.

Fluorescence Colocalization Analysis to Support Co-IP Findings

Fluorescence colocalization microscopy, including confocal or super-resolution imaging, further supports Co-IP data by demonstrating spatial proximity within cells. High Pearson correlation coefficients between fluorescent signals suggest potential interaction, though they do not confirm physical binding.

Advanced Co-IP Variants and Complementary Strategies

Crosslinking Co-IP (X-Co-IP) to Capture Transient Interactions

Crosslinking Co-IP employs chemical crosslinkers such as formaldehyde or DSS. Crosslinkers freeze transient interactions. Researchers quench crosslinkers before lysis. X-Co-IP uncovers fleeting complexes that standard Co-IP may miss.

Sequential Co-IP (Re-IP) for Dissecting Multiprotein Complexes

Sequential immunoprecipitation (Re-IP) enriches subcomplexes. Researchers elute complexes from the first IP under mild conditions. The eluate then undergoes a second IP with a different antibody. This approach dissects the architecture of multiprotein assemblies.

Chromatin Immunoprecipitation (ChIP-IP) for DNA-Associated Protein Complexes

ChIP-IP isolates protein complexes bound to chromatin. Researchers crosslink proteins to DNA. Following sonication, antibodies capture target proteins and associated DNA. Downstream analysis identifies genomic binding sites.

Proximity Labeling Coupled with Co-IP (BioID-Co-IP)

BioID utilizes a promiscuous biotin ligase fused to the bait protein. Proximal proteins acquire biotin tags in living cells. Streptavidin beads capture biotinylated proteins. A subsequent Co-IP step enhances specificity. This hybrid method maps neighbourhood interactomes in vivo.

Applications of Co-IP

Identifying Disease-Associated Protein Complexes in Cancer Biology

Co-IP has elucidated oncoprotein complexes. For example, interactions between mutant p53 and transcriptional coactivators inform tumour progression. Quantitative Co-IP reveals alteration in binding partners upon drug treatment.

Discovering Viral-Host Protein Interactions for Antiviral Therapeutics

Co-IP uncovers viral accessory proteins bound to host factors. For instance, interactions between SARS-CoV-2 nonstructural proteins and human innate immune regulators have guided antiviral design.

Mapping Signal Transduction Pathways in Neurodegenerative Diseases

Neuronal signaling complexes undergo dynamic assembly. Co-IP identifies interactions between kinases and adaptor proteins. The data inform molecular mechanisms underpinning neurodegeneration.

Co-IP in Stem Cell and Developmental Biology

Protein complexes regulate pluripotency and differentiation. Co-IP reveals interactions between transcription factors and chromatin remodelers. These insights advance regenerative medicine.

Case Study

Co‑immunoprecipitation with Tau isoform‑specific antibodies reveals distinct protein interactions and highlights a putative role for 2N Tau in disease

Journal: Journal of Biological Chemistry

Published: 2016

DOI: 10.1074/jbc.M115.641902

Background

Tau protein exists in multiple isoforms arising from alternative splicing. In mammals, three main isoforms are present: 0N (no N-terminal inserts), 1N (one insert), and 2N (two inserts). The specific cellular functions of each isoform remain poorly defined, particularly in the context of neurological disorders such as Alzheimer's disease.

Purpose

The study aimed to characterize and compare the distinct protein interaction partners of Tau isoforms, with a focus on uncovering any isoform-specific associations that might shed light on differential roles in neuronal function and disease pathways.

Methods

• Developed isoform-specific antibodies targeting each Tau variant.
• Employed Co-IP on mouse brain lysates, pulling down Tau proteins along with their binding partners.
• Coupled Co-IP with quantitative mass spectrometry using tandem mass tags (TMT) to compare across isoforms.
• Validated interactions via reverse Co-IP, using antibodies against selected prey proteins (e.g., apoA1, β‑synuclein).

Results

• Identified 33 proteins as significant Tau interactors, many of which localize to the plasma membrane, mitochondria, or synaptic regions.
• Specific isoform-binding preferences emerged: for instance, apolipoprotein A1 (apoA1) showed fivefold greater affinity for 2N Tau, while β‑synuclein favored 0N Tau.
• Reverse Co-IP with apoA1 enriched exclusively the 2N Tau isoform, confirming isoform‑specific interaction.

Conclusion

The research demonstrated that distinct Tau isoforms engage unique protein networks. Particularly, the 2N Tau variant is implicated in pathways associated with neurological disease due to its selective binding partners. These findings support a model in which isoform-specific Tau interactions contribute to differential roles in neuronal physiology and pathophysiology.

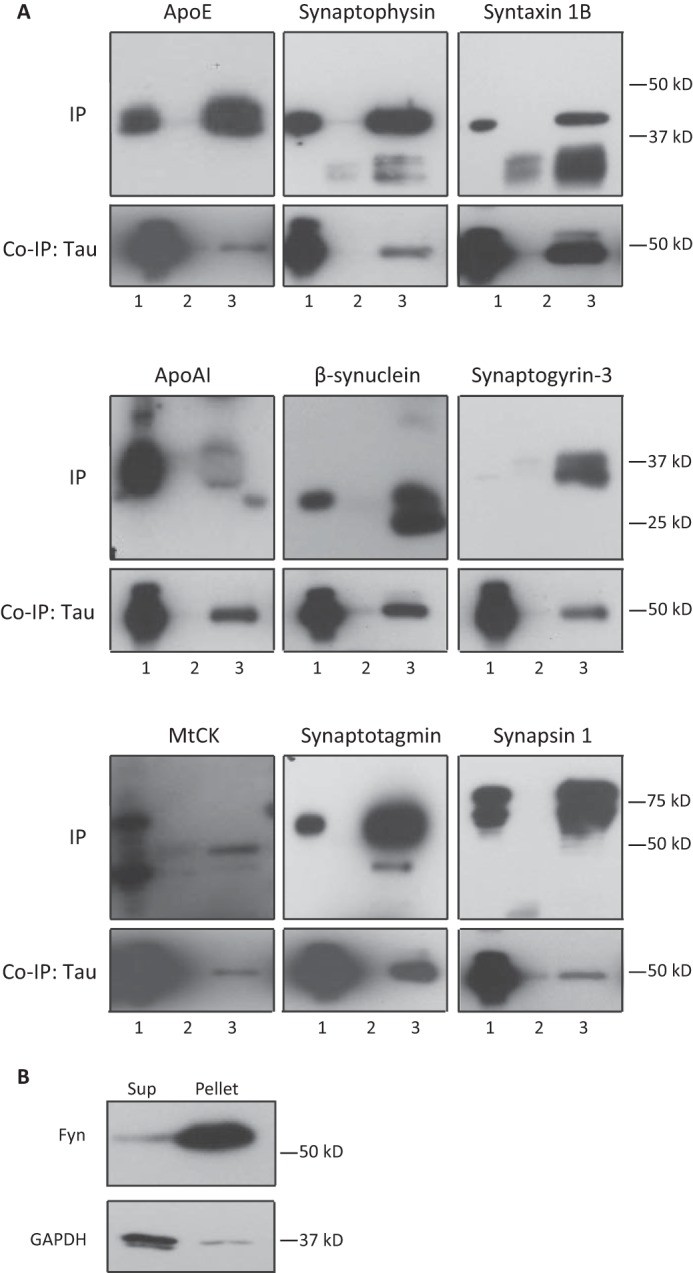

Figure 2. Validation of identified Tau-interacting proteins by co-immunoprecipitation.

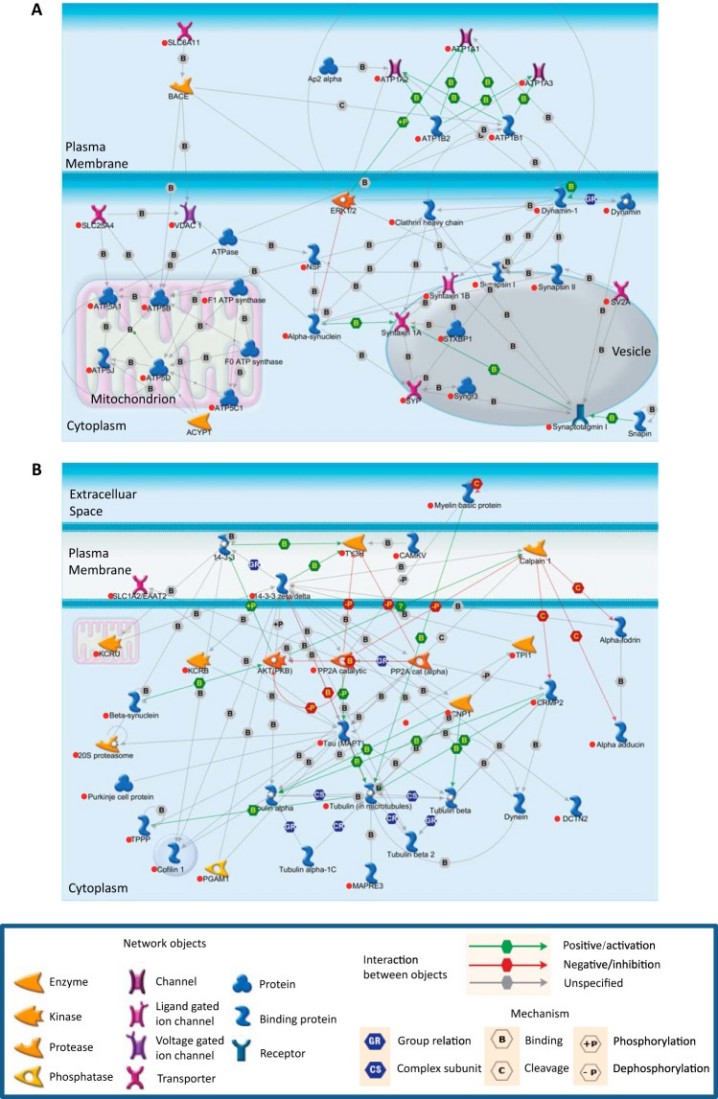

Figure 3. Ingenuity pathway analysis identifies two highly enriched networks for the Tau-interacting proteins.

References

• Lin J S, Lai E M. Protein-protein interactions: co-immunoprecipitation. Bacterial protein secretion systems: Methods and protocols, 2017: 211-219. DOI: 10.1007/978-1-4939-7033-9_17
• Tang Z, Takahashi Y. Analysis of protein-protein interaction by Co-IP in human cells. Two-Hybrid Systems: Methods and Protocols, 2018: 289-296. DOI: 10.1007/978-1-4939-7871-7_20
