How to Perform Fluorescence Colocalization Analysis

What is the Technique of Colocalization?

Fluorescence colocalization analysis is a core imaging technique widely used in cell biology. It helps researchers pinpoint where two or more tagged biomolecules are located in the same cellular region. By visualising how molecules overlap inside cells, this method offers critical insight into how proteins move, interact, or signal together. From tracking organelle behavior to mapping intracellular communication, colocalization plays a vital role in decoding complex biological processes.

Fluorescence proceeds through three discrete stages:

• Absorption: When a fluorophore captures an incoming photon and its electron is promoted to a higher energy orbital.
• Excited-state lifetime: a brief interval in which the electron resides in the excited state and may undergo non-radiative relaxation (internal conversion or vibrational decay).
• Emission: when the electron returns to the ground state and releases a photon of lower energy (longer wavelength), generating the detectable fluorescent signal.

Principles of Fluorescence Colocalization

Fluorophore Properties and Spectral Separation

The success of colocalization relies heavily on the optical properties of the chosen fluorophores. Key parameters include excitation and emission wavelengths, quantum yield, and photostability. Spectral separation is vital to avoid bleed-through or cross-talk between channels. Optimal fluorophore pairs, such as Alexa Fluor 488 and Alexa Fluor 568, are chosen to ensure minimal spectral overlap, enhancing signal fidelity.

Types of Colocalization

Colocalization can be classified as:

• True colocalization, where signals originate from the same subcellular location.
• Apparent colocalization, where signals overlap due to limited resolution.
• Random colocalization, which arises from chance overlaps in densely labeled areas.

Direct vs. Indirect Colocalization

• Direct colocalization indicates physical interaction or binding, often corroborated by techniques such as fluorescence resonance energy transfer (FRET).
• Indirect colocalization suggests that two molecules reside within the same cellular structure or functional domain but do not physically interact.

Experimental Design for Colocalization Analysis

Choosing the Right Fluorophores for Dual or Triple Labeling

In fluorescence imaging, success often comes down to one thing: selecting the right fluorophores. For colocalization studies, this choice directly affects image clarity and interpretation.

To reduce signal overlap, look for fluorophores with:

• Distinct excitation and emission wavelengths
• High quantum yield (brightness)
• Strong resistance to photobleaching

Spectral separation is especially important. Without it, signals from different channels can bleed into each other, creating false-positive results.

For dual-label experiments, many labs prefer reliable pairs like Alexa Fluor 488 and Alexa Fluor 568. These dyes offer strong signals with minimal cross-talk, making them ideal for high-fidelity colocalization imaging.

Sample Preparation and Fixation Methods

To accurately study where proteins are located inside cells, preserving their original position is essential. That starts with selecting the right fixation method for your target proteins.

• Paraformaldehyde (PFA) is commonly used to retain overall cell shape and soluble proteins.
• Cold methanol works better for stabilising cytoskeletal structures or membrane-associated proteins.

But fixation is a balancing act. Too much can lock proteins in place so tightly that antibodies cannot bind.

Once fixed, cells need to be made permeable so antibodies can reach their targets. Here, reagents like Triton X-100 or saponin are helpful—but only when their concentrations and exposure times are carefully controlled. Done right, this step opens up the cell without damaging its internal structures.

Antibody and Probe Selection for Immunofluorescence

When preparing for immunofluorescence labeling, antibody quality directly impacts your signal accuracy. Start by selecting primary antibodies that are:

• Highly specific to the target protein
• Affinity-purified to reduce background
• Fully validated for use in immunofluorescence protocols

To prevent cross-reactivity during secondary labeling, choose primary antibodies raised in different host species. This step is especially critical in dual or triple staining experiments.

Secondary antibodies conjugated with fluorophores should be titrated carefully. Using too much can lead to signal oversaturation or non-specific background, both of which compromise data clarity.

Microscope Calibration and Imaging Settings

Accurate colocalization analysis demands rigorous microscope calibration. Alignment of optical paths is validated using multicolor fluorescent beads to correct chromatic aberrations. Acquisition parameters, including laser intensity, detector gain, and pinhole size, must be standardized across all samples. Z-stack imaging with appropriate step sizes enables 3D reconstruction and accurate colocalization in volume.

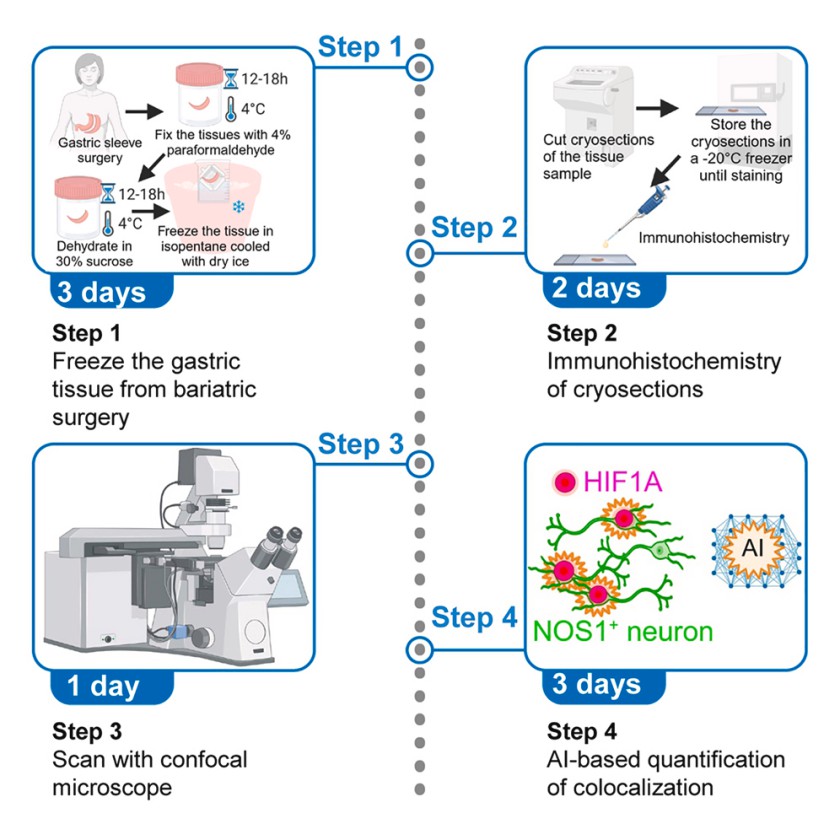

Figure 1. Steps for AI-supported immunofluorescence colocalization analysis (Choi E L, et al., 2025).

Imaging Techniques for Fluorescence Colocalization

Confocal Microscopy for High-Resolution Colocalization Imaging

Confocal laser scanning microscopy is widely used due to its ability to eliminate out-of-focus light through spatial pinholes, producing sharp optical sections. It enables high-resolution imaging in both lateral and axial dimensions, allowing precise 3D reconstruction of fluorescent signals. For colocalization, z-stack imaging and maximum intensity projections are commonly applied.

Super-Resolution Imaging for Sub-Diffraction Colocalization

Super-resolution techniques, including Structured Illumination Microscopy (SIM), Stimulated Emission Depletion (STED), and Stochastic Optical Reconstruction Microscopy (STORM/PALM), surpass the diffraction limit of ~200 nm. These methods provide nanometer-scale localization of biomolecules, enabling the resolution of colocalized structures within densely packed environments. They are especially valuable when colocalizing proteins within sub-organellar domains.

Live-Cell Imaging for Dynamic Colocalization Studies

Live-cell imaging permits temporal tracking of molecular interactions using fluorescent protein tags (e.g., GFP, RFP). Time-lapse acquisition captures real-time trafficking, fusion, or compartmentalization events. Environmental chambers are essential for maintaining physiological conditions.

Avoiding Common Imaging Artifacts in Colocalization

Artifacts such as spectral bleed-through, autofluorescence, photobleaching, and chromatic aberration can compromise data integrity. These can be mitigated using spectral unmixing, well-matched filter sets, and proper calibration using multicolor beads. Negative and single-label controls are indispensable for assessing channel independence and setting thresholds for quantitative analysis.

Quantitative Colocalization Analysis Methods

Manual vs. Automated Colocalization Analysis

Manual analysis involves user-defined region of interest (ROI) selection and is susceptible to observer bias. Automated analysis using image processing software enhances reproducibility and enables high-throughput analysis.

Colocalization Metrics

Quantitative metrics include:

• Pearson's Correlation Coefficient (PCC): Measures signal intensity correlation between channels.
• Manders' Overlap Coefficient (MOC): Quantifies the fraction of signal overlapping in both channels.
• Li's Intensity Correlation Quotient (ICQ): Evaluates spatial dependence.

Software Tools for Colocalization Image Analysis

Widely used tools include:

• ImageJ/Fiji with Coloc2 plugin
• Imaris
• CellProfiler
• Bitplane

These platforms offer robust algorithms for ROI segmentation, background correction, and statistical testing.

Data Interpretation and Statistical Validation

Statistical analysis requires multiple biological replicates and randomized controls. Randomization-based tests and significance thresholds (e.g., p < 0.05) validate the reliability of observed colocalization. Visual inspection should support quantitative findings.

Advanced Colocalization Strategies and Combined Approaches

Integration with Co-Immunoprecipitation (Co-IP)and Bimolecular fluorescence complementation (BiFC)

Co-IP provides biochemical confirmation of interactions detected via colocalization. BiFC further confirms interaction by reconstitution of a split fluorescent protein upon complex formation.

Combining Colocalization with FRET for Direct Interaction Detection

FRET detects direct protein interactions by measuring energy transfer between fluorophores. Combining colocalization with FRET offers spatial and mechanistic insight into biomolecular interactions at nanometer scale.

Machine Learning and AI-Based Colocalization Analysis

Machine learning algorithms trained on large datasets can automatically classify colocalization events with high accuracy. AI-driven tools improve consistency, enable real-time analysis, and extract subtle patterns unobservable through traditional methods.

Colocalization in Tissue Imaging and 3D Organoid Models

In situ, colocalization in complex tissues or 3D models (e.g., organoids) provides a physiologically relevant context. Light-sheet microscopy and tissue-clearing techniques enhance penetration depth and resolution for whole-mount analysis.

Comparison with Other Fluorescence-Based Approaches

Applications of Fluorescence Colocalization Analysis

Cellular Trafficking and Organelle Dynamics

Colocalization is frequently employed to study intracellular trafficking pathways by tracking the movement of proteins or lipids through organelles such as endosomes, lysosomes, Golgi apparatus, and mitochondria.

PPIs Validation

Although colocalization alone does not confirm direct interaction, it serves as a powerful preliminary screen for physical associations between proteins. Combined with biochemical validation methods such as Co-IP or proximity ligation assays, colocalization can support hypotheses about protein complex formation and signaling cascades.

Disease Mechanism Investigation

Aberrant protein localization is a hallmark of numerous diseases, including cancer, neurodegeneration, and viral infections. Colocalization analysis enables researchers to visualize mislocalization events, aggregation, or altered trafficking in disease states.

Drug Target Localization and Therapeutic Monitoring

In pharmacological research, colocalization is used to determine whether therapeutic agents reach their intended targets within cells. Fluorescently labeled drugs or delivery vehicles can be tracked to confirm colocalization with target organelles, receptors, or enzymes, thereby informing drug design and delivery efficiency.

Developmental and Tissue-Specific Studies

Advanced applications include colocalization analysis in tissue sections or organoids, where spatial organization of gene expression or protein localization is crucial for developmental biology. High-resolution colocalization in three-dimensional structures reveals how molecular networks operate within complex microenvironments.

Case Study

Fluorescence microscopy colocalization of lipid-nucleic acid nanoparticles with wildtype and mutant Rab5-GFP: A platform for investigating early endosomal events

Journal: Published in Biochimica et Biophysica Acta (BBA) – Biomembranes

Published: 2015

DOI: 10.1016/j.bbamem.2015.03.001

Background

Efficient cytoplasmic delivery of nucleic acids via lipid-nucleic acid nanoparticles (NPs) is often hindered by endosomal entrapment. Early endosomes (EEs) are transient and small, making quantitative tracking of NP localization within them challenging. Rab5—a GTPase associated with early endosomes—is commonly tagged with GFP (Rab5–GFP) to visualize and analyze early endosomal trafficking.

Purpose

This study aimed to quantitatively determine how many NPs localize within early endosomes under physiological and altered conditions. Specifically, it sought to compare the colocalization of NPs with Rab5-GFP in wild-type cells versus cells expressing a mutant Rab5 (Q79L) that causes enlarged, prolonged early endosomes.

Methods

• Cells expressing either Rab5–GFP (wildtype) or Rab5-Q79L-GFP (GTP hydrolysis–deficient mutant) were used.
• NPs tagged with RGD peptides (targeting integrin receptors) and fluorescent labels were applied to cells for under 1 hour.
• Fluorescence colocalization captured Rab5-GFP (green) and NP signal (red).
• Quantitative colocalization was measured by pixel overlap between NP and endosomal markers.

Results

• In wildtype Rab5-GFP cells, ≈ 35% of NPs colocalized with early endosomes within 1 hour—regardless of nanoparticle surface charge density.
• In Rab5-Q79L-GFP mutant cells, early endosomes became enlarged "giant" EEs (GEEs). Nearly 100% of intracellular NPs were colocalized within these GEEs.
• This indicates that endosomal escape is rare at early EE stages and more likely to occur downstream.

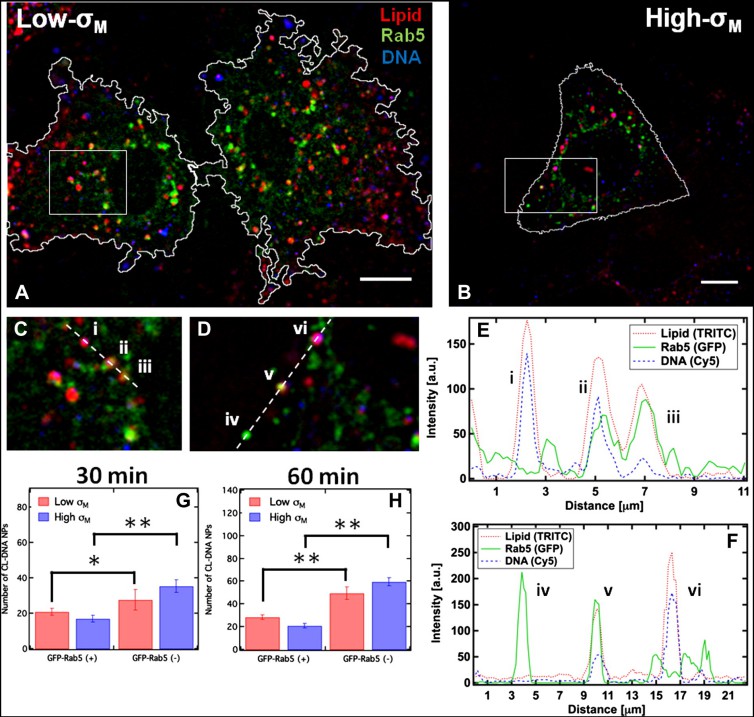

Figure 2. CL-DNA NPs colocalize with Rab5-GFP-labeled endosomes.

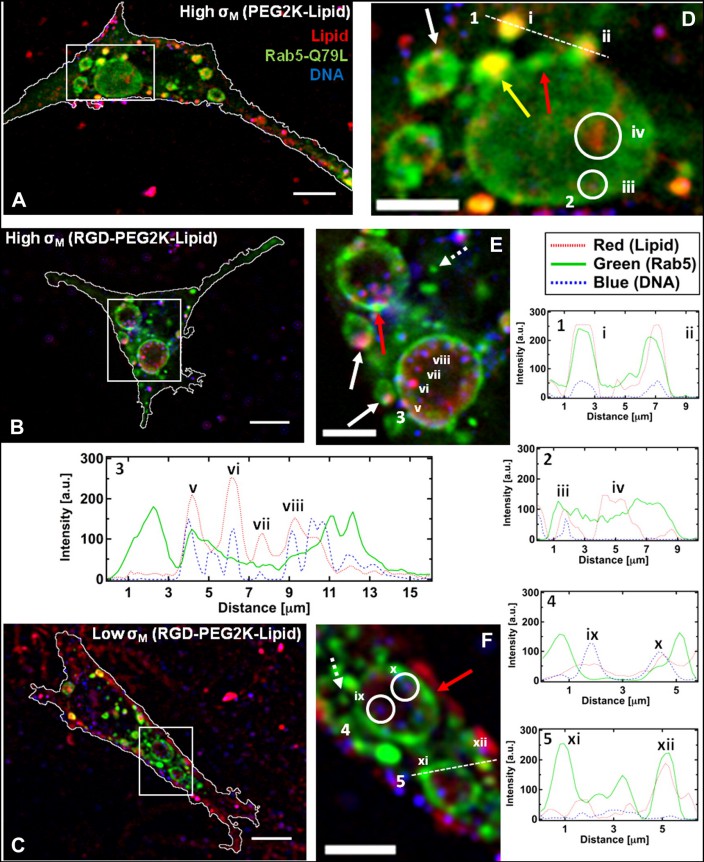

Figure 3. Colocalization of CL-DNA NPs and giant early endosomes (GEEs).

Conclusion

The mutant Rab5-Q79L platform enables clearer visualization and quantification of NP-endosome colocalization. The data confirm that NPs largely remain trapped in early endosomes and suggest that escape—and therefore functional delivery—occurs later, during processing in late endosomal or lysosomal compartments. The authors propose that Rab5-Q79L serves as an effective imaging assay for studying nanocarrier trafficking.

References

• Comeau J W D, Costantino S, Wiseman P W. A guide to accurate fluorescence microscopy colocalization measurements. Biophysical journal, 2006, 91(12): 4611-4622. DOI: 10.1529/biophysj.104.048967
• Choi E L, et al. Protocol for AI-supported immunofluorescence colocalization analysis in human enteric neurons. STAR protocols, 2025, 6(2): 103828. DOI: 10.1016/j. xpro.2025.103828
• Koyama-Honda I, et al. Fluorescence imaging for monitoring the colocalization of two single molecules in living cells. Biophysical Journal, 2005, 88(3): 2126-2136. DOI: 10.1529/biophysj.106.089441
