Introduction to Protein Post-Translational Modifications (PTMs)

What are Post-Translational Modifications (PTMs)?

Protein post-translational modifications (PTMs) represent a fundamental layer of cellular regulation, introducing chemical diversity beyond the canonical amino acid sequence encoded by the genome. Following ribosomal synthesis, proteins undergo covalent modifications—such as phosphorylation, glycosylation, ubiquitination, acetylation, and methylation—that critically alter their structure, stability, localization, and function. These modifications enable a single gene to give rise to multiple protein isoforms with distinct regulatory roles, amplifying proteomic complexity. The reversible nature of many PTMs, including phosphorylation and acetylation, permits rapid cellular responses to environmental stimuli and stress, influencing key processes like signal transduction, gene expression, and programmed cell death. Abnormal PTM patterns are increasingly recognized as hallmarks of diseases such as cancer, neurodegeneration, and metabolic disorders, making them valuable biomarkers and targets for novel therapeutic strategies. This intricate network of modifications fine-tunes protein function and provides critical insights into cellular homeostasis and pathogenesis, fueling advances in precision medicine and biotechnology.

Figure 1. PTMs within the mammalian cell. (Dunphy K, et al., 2021)

Where are PTMs Sites?

Enzymatic PTMs

Enzymatic modifications are driven by dedicated enzymes that recognize specific amino acid motifs and catalyze the addition or removal of chemical groups. This highly regulated process ensures precise spatial and temporal control of protein function.

Glycosylation and Protein Stability

Glycosylation is mediated by glycosyltransferases, which attach oligosaccharide chains to proteins via N-linked or O-linked glycosidic bonds. This modification is crucial for protein folding, stability, and trafficking. For instance, N-linked glycosylation of membrane receptors stabilizes the protein structure and modulates cell–cell recognition and immune response. Disruptions in glycosylation patterns have been linked to congenital disorders and cancer.

Ubiquitination and Protein Degradation

Ubiquitination involves a cascade of enzymatic steps carried out by E1 activating enzymes, E2 conjugating enzymes, and E3 ligases. The attachment of ubiquitin molecules serves as a signal for proteasomal degradation, thereby regulating protein turnover and maintaining cellular homeostasis. Aberrant ubiquitination is implicated in neurodegenerative diseases, where misfolded proteins escape degradation and form toxic aggregates.

Acetylation, Methylation, and Epigenetic Regulation

Acetyltransferases and methyltransferases modulate protein function by transferring acetyl and methyl groups, respectively, primarily on lysine and arginine residues. In the context of histone proteins, these modifications are fundamental to chromatin remodeling and gene regulation. Acetylation generally results in a relaxed chromatin state, enhancing transcription, while methylation can either activate or repress gene expression depending on the specific residue and the number of methyl groups added. These epigenetic modifications have profound effects on cellular differentiation and oncogenesis.

Phosphorylation and Signal Transduction

The reversible addition of phosphate groups by kinases, and their removal by phosphatases, is a cornerstone of intracellular signaling. Phosphorylation typically occurs on serine, threonine, or tyrosine residues, acting as a molecular switch that modulates enzyme activity, protein interactions, and signal transduction pathways. A classic example is the phosphorylation cascade in the MAPK pathway, which governs cell proliferation and apoptosis. High-throughput mass spectrometry techniques have revolutionized the ability to profile phosphorylation events, revealing complex signaling networks within cells.

Nitrosylation and Protein Conformation

Nitrosylation, mediated by nitric oxide synthases, results in the covalent attachment of a nitric oxide moiety to cysteine residues. This modification can alter protein conformation and activity, influencing processes such as vasodilation, immune response, and apoptosis. Research has shown that dysregulated nitrosylation contributes to inflammatory diseases and neurodegeneration.

Disulfide Bond and Protein Structure

Protein disulfide isomerases catalyze the formation of disulfide bonds between cysteine residues in the endoplasmic reticulum. These covalent linkages are essential for stabilizing the three-dimensional structure of many secreted and membrane-bound proteins. Disulfide bonds are particularly important in the structural integrity of antibodies and hormones, such as insulin, where they maintain the correct conformation required for biological activity.

Lipidation and Membrane Targeting

Lipidation encompasses several modifications, including myristoylation, palmitoylation, and prenylation, where lipid groups are attached to proteins. This modification increases the hydrophobicity of proteins, facilitating their association with cellular membranes and influencing intracellular trafficking and signal transduction. Lipidation of signaling proteins such as Src family kinases is vital for their proper localization and function within membrane microdomains.

Non-Enzymatic PTMs

Non-enzymatic modifications occur without catalytic proteins and are often driven by cellular conditions such as oxidative stress or high glucose levels. These modifications are less regulated and can harm protein function if not adequately controlled.

Oxidation, Carbonylation, and Protein Aggregation

Exposure to reactive oxygen species (ROS) can oxidize susceptible amino acids, forming carbonyl groups. These oxidative modifications can disrupt protein structure, leading to loss of function and the formation of protein aggregates. Elevated protein carbonylation levels are observed in aging tissues and in diseases such as Alzheimer's, where oxidative stress plays a central role.

Glycation and Its Impact on Protein Function

Glycation is the non-enzymatic attachment of sugar molecules to proteins, leading to the formation of advanced glycation end-products (AGEs). Unlike glycosylation, glycation is not tightly regulated and can cause significant alterations in protein structure and function. AGEs are associated with diabetic complications, chronic inflammation, and vascular damage, highlighting the importance of monitoring non-enzymatic modifications in metabolic disorders.

Experimental Techniques for Analyzing PTMs

PTM Identification by Mass Spectrometry

• Bottom-Up Proteomics: Proteins are digested into smaller peptides, often using trypsin. These peptides are then separated by liquid chromatography (LC). The LC-MS/MS workflow creates fragmentation spectra for each peptide. This process helps pinpoint PTM sites through database searching and de novo sequencing. Fragmentation techniques like collision-induced dissociation (CID), higher-energy collisional dissociation (HCD), and electron-transfer dissociation (ETD) are used. They improve sequence coverage and protect labile modifications. This ensures accurate identification of sensitive PTMs, such as phosphorylation and glycosylation. Overall, this method allows for detailed mapping of modification sites and is common in large-scale PTM studies.
• Middle-Down Proteomics: Middle-down proteomics is an intermediate method. It uses limited proteolysis to create larger peptide fragments. These longer fragments keep more contextual information about multiple PTMs. This offers insights into how protein modifications work together, which bottom-up analyses may miss. Top-down proteomics is more complex but involves analyzing intact proteins directly. This method shows the full range of PTM isoforms. It also preserves the native state of proteins and reveals complex modification patterns that influence protein function and interactions.
• Top-Down Proteomics: Top-down proteomics is a mass spectrometry method. It analyzes whole proteins without digestion. This keeps important structural features and all PTMs. In this method, intact proteins are first separated. Techniques used include liquid chromatography and 2-D gel electrophoresis. Next, proteins are ionized using soft ionization methods. These methods include electrospray ionization (ESI) and matrix-assisted laser desorption/ionization (MALDI).Then, fragmentation methods are applied. These methods include higher energy collision-induced dissociation (HCD), electron-capture dissociation (ECD), and electron-transfer dissociation (ETD). Each method allows for detailed sequencing and mapping of modifications in a single spectrum.

Figure 2. Divergent workflows in top-down and bottom-up proteomics. (Toby T K, et al.; 2016)

Antibody-Based Detection Methods

• Western Blotting: Antibody-based detection methods are both specific and versatile for analyzing protein PTMs. Western blotting is a fundamental technique in PTM analysis. In this process, proteins are separated using SDS-PAGE and transferred to membranes. They are then incubated with antibodies that target specific modifications. This method can detect low-abundance PTMs, such as phosphorylation and acetylation. It also gives semi-quantitative data on protein expression levels across various conditions. High-affinity antibodies, optimized blocking conditions, and advanced chemiluminescence or fluorescence systems improve signal detection and ensure reproducibility.
• Immunoprecipitation (IP): IP further enhances the sensitivity of antibody-based detection by isolating target proteins or modified peptides from complex samples. In IP, antibodies directed against the PTM of interest are used to capture the modified proteins from cell lysates. The antigen-antibody complexes are then pulled down using protein A/G-conjugated beads. Subsequent elution and analysis via Western blotting or mass spectrometry allow for precise identification and quantification of PTMs. This method is particularly advantageous for enriching low-abundance modifications that might be otherwise obscured in total protein extracts. Integration of IP with downstream detection techniques maximizes the analytical power, ensuring that subtle changes in PTM status are accurately measured.

Protein Enrichment and Purification Strategies

• Affinity Enrichment: Utilizes antibodies or chemical probes that selectively bind modified residues, reducing sample complexity and enhancing the detection of rare PTMs. Commercial enrichment kits, such as those for phosphoproteins or glycoproteins, streamline sample preparation and are integral to high-throughput workflows.
• Chemical Labeling and Bioorthogonal Methods: These innovative approaches involve the selective tagging of PTMs with detectable labels via bioorthogonal reactions. Such labeling enables the subsequent isolation of modified proteins using affinity purification, followed by MS analysis. This strategy is particularly advantageous for dynamic modifications like nitrosylation, where traditional antibody approaches may fall short.

Bioinformatics Tools and Databases for PTM Analysis

PTM Databases for Data Collection and Annotation

• PhosphoSitePlus: A curated resource specializing in phosphorylation, ubiquitination, and acetylation data, offering site-specific information on experimentally validated PTMs.
• dbPTM: Provides an extensive repository of experimentally verified and predicted PTMs across multiple species, alongside structural annotations.
• iPTMnet: Integrates PTM data from various sources using text mining and curation, offering functional insights into PTM networks.
• UniProt: Includes manually curated PTM data within its protein sequence annotations, serving as a primary reference for proteomics research.

Prediction Tools for PTM Site Identification

• NetPhos and NetAcet: Utilize machine learning algorithms to predict phosphorylation and acetylation sites, enhancing experimental design.
• GPS (Group-based Prediction System): Provides accurate predictions for kinase-specific phosphorylation sites.
• ModPred: Predicts a wide range of PTMs, including glycosylation, methylation, and ubiquitination, using sequence motif analysis.

Visualization and Structural Analysis Tools

• PyMOL and Chimera: Enable molecular visualization of PTMs on 3D protein structures, assisting in understanding functional implications.
• SwissSidechain: Provides structural information on PTM-modified amino acids, facilitating computational modeling of modified proteins.

Applications of PTM Research in Biotechnology and Disease Studies

PTMs in Cell Signaling and Regulatory Networks: PTMs act as precise molecular switches that dictate the functional states of proteins in signal transduction pathways. Phosphorylation events, for instance, regulate receptor tyrosine kinases that control cell proliferation and differentiation. Detailed mapping of phosphorylation sites has revealed that even subtle changes can redirect cellular responses, as evidenced by the altered activation of the MAPK/ERK pathway in various cancers. Glycosylation also plays a critical role in cell–cell recognition and immune responses by modulating the conformation and stability of cell surface receptors.

Role of PTMs in Disease Mechanisms and Biomarker Discovery: Aberrant PTM patterns are strongly correlated with disease progression. For example, hyperphosphorylation of tau protein is a key hallmark of Alzheimer's disease, while dysregulated ubiquitination pathways can lead to the accumulation of misfolded proteins in neurodegenerative disorders such as Parkinson's disease. Oxidative modifications, including carbonylation, have been documented in aging tissues and are used as biomarkers for oxidative stress-related conditions. In metabolic disorders, non-enzymatic glycation results in the formation of advanced glycation end-products (AGEs), which impair protein function and contribute to the complications of diabetes.

Innovative Therapeutic Strategies Targeting PTMs: Targeting the enzymes responsible for PTMs represents a promising therapeutic approach. Small-molecule inhibitors of kinases, deacetylases, and ubiquitin ligases are already being developed and tested in preclinical models, with some progressing into clinical trials. For instance, kinase inhibitors have shown efficacy in downregulating aberrant phosphorylation events in several cancer subtypes, while histone deacetylase inhibitors are emerging as powerful tools to modulate epigenetic regulation in hematological malignancies.

Case Study

IKK phosphorylates Huntingtin and targets it for degradation by the proteasome and lysosome

Journal: Journal of Cell Biology

Published: 2009

DOI: 10.1083/jcb.200909067

Background

Huntington's disease (HD) is characterized by the accumulation of mutant Huntingtin (Htt) protein, particularly those with expanded polyglutamine (polyQ) repeats, which contributes to neurodegeneration. Previous studies have implicated post-translational modifications in regulating protein clearance, but the mechanisms underlying Htt degradation remain unclear.

Purpose

The study aimed to determine whether the inflammatory kinase IKK phosphorylates Htt, thereby triggering a cascade of post-translational modifications that promote its degradation via proteasomal and lysosomal pathways. This research sought to clarify the mechanisms that facilitate Htt clearance and how these processes might be impaired in HD.

Methods

• Phosphorylation Analysis: Mass spectrometry and phospho-specific antibodies were used to detect phosphorylation at serine 13 (S13) and serine 16 (S16) of Htt.
• Mutational Studies: Phosphomimetic and phosphoresistant mutants of Htt were generated to assess the effects on ubiquitination, SUMOylation, and acetylation.
• Cellular Assays: Transfection experiments in cell lines (e.g., ST14A, NIH-3T3) and primary neurons were performed to analyze Htt localization and degradation.
• Inhibitor Studies: Proteasome and lysosome inhibitors were applied to determine the degradation pathways involved.
• In Vivo Models: Mouse brain samples were analyzed to confirm the presence of modified Htt species.

Results

• IKK phosphorylates Htt at S13 and likely primes phosphorylation at S16, leading to enhanced clearance of wild-type Htt via proteasomal and lysosomal pathways.
• Phosphorylation regulates downstream modifications, including ubiquitination, SUMOylation, and acetylation, which alter Htt's subcellular localization (notably increased nuclear localization).
• Mutant Htt with expanded polyQ repeats shows reduced phosphorylation efficiency, leading to its accumulation.
• Proteins involved in lysosomal degradation (e.g., LAMP-2A, Hsc70) modulate the clearance of phosphorylated Htt.
• Modified Htt species were detected in mouse brain, supporting the in vivo relevance of the findings.

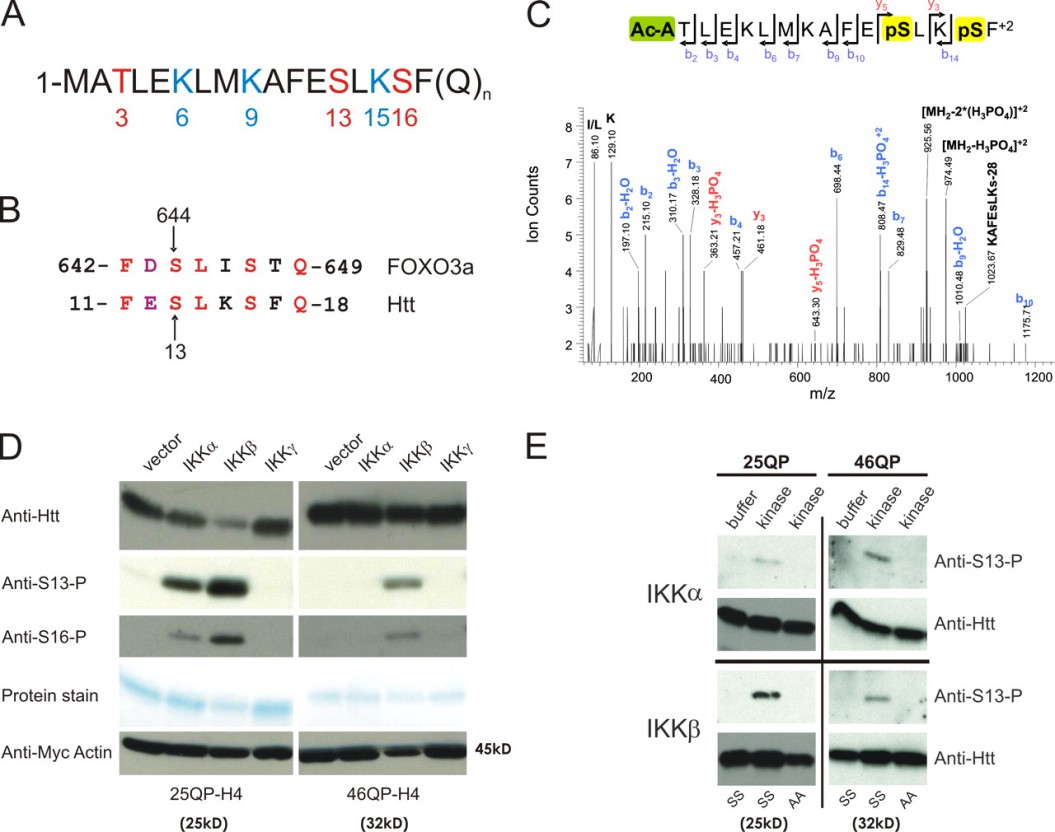

Figure 3. IKK directly phosphorylates Htt.

Figure 4. Phosphorylation of Httex1p regulates its ubiquitination, SUMOylation, acetylation, and nuclear localization.

Conclusion

The study concludes that IKK-mediated phosphorylation of Htt initiates a cascade of modifications that promote its degradation through proteasomal and lysosomal pathways. The reduced efficiency of this mechanism in mutant Htt may contribute to the pathogenesis of HD, suggesting that enhancing these clearance pathways could offer therapeutic benefits.

References

• Mann M, Jensen O N. Proteomic analysis of post-translational modifications. Nature biotechnology, 2003, 21(3): 255-261. DOI: 10.1038/nbt0303-255
• Dunphy K, et al. Current methods of post-translational modification analysis and their applications in blood cancers. Cancers, 2021, 13(8): 1930. DOI: 10.3390/cancers13081930
• Toby T K, Fornelli L, Kelleher N L. Progress in top-down proteomics and the analysis of proteoforms. Annual review of analytical chemistry, 2016, 9(1): 499-519. DOI: 10.1146/annurev-anchem-071015-041550
