SUMOylation Analysis: Mechanisms, Techniques, and Biological Significance

What is SUMOylation?

SUMOylation is the covalent attachment of small ubiquitin-related modifier (SUMO) proteins to lysine (Lys) residues on target proteins. This post-translational modification alters protein function by modulating protein-protein interactions, subcellular localization, and enzymatic activity. Unlike ubiquitination—primarily a signal for proteasomal degradation—SUMOylation predominantly regulates diverse cellular functions such as nuclear transport, transcriptional regulation, and DNA repair. The process is characterized by its reversible nature, with dynamic cycles of SUMO conjugation and deconjugation ensuring rapid cellular response to internal and external stimuli.

What are the Differences Between SUMOylation and Ubiquitination

Mechanisms of SUMOylation

The SUMOylation Process

• Activation: SUMO is initially synthesized as an inactive pro-form that requires proteolytic cleavage of a short C-terminal extension to expose a conserved Gly-Gly motif. This maturation is catalyzed by SUMO-specific isopeptidases (SENPs). Subsequently, the mature SUMO is activated in an ATP-dependent manner by a heterodimeric E1 enzyme, composed of subunits SAE1 and SAE2, forming a high-energy thioester bond.
• Conjugation: A trans-thioesterification reaction transfers The activated SUMO to the sole E2 conjugating enzyme, UBC9. UBC9 recognizes target proteins that present a consensus SUMOylation motif (ΨKxE) or, in certain instances, non-canonical sites.
• Transfer: In most cases, the conjugation process is further facilitated by SUMO E3 ligases that promote the transfer of SUMO from UBC9 to the target protein, establishing an isopeptide bond between the C-terminal glycine of SUMO and the ε-amino group of a lysine residue on the substrate.

Enzymes Involved in SUMOylation: E1, E2, and E3 Ligases

• E1 Activating Enzyme: A heterodimer composed of SAE1 and SAE2 catalyzes mature SUMO's adenylation and subsequent thioester linkage.
• E2 Conjugating Enzyme: Ubc9 is the sole E2 enzyme implicated in the transfer of SUMO to target proteins. A consensus motif facilitates its interaction with substrates.
• E3 Ligases: Although Ubc9 alone can mediate SUMOylation of substrates containing a consensus site, E3 ligases such as the PIAS family proteins, RanBP2, and other SP-RING domain-containing enzymes markedly enhance the specificity and efficiency of the reaction.

Regulation of SUMOylation Dynamics

Despite many substrates being modified at only a low stoichiometry at steady state, SUMOylation exerts profound biological effects. This paradox is resolved by the dynamic nature of the modification, wherein rapid SUMO conjugation and deconjugation allow even transient modifications to initiate long-lasting alterations in protein function. Post-translational modifications such as phosphorylation, acetylation, and competing ubiquitination further modulate SUMOylation, often through changes in the conformation of target proteins or their subcellular localization. The delicate balance maintained by SUMO-specific isopeptidases (SENPs) ensures that a fleeting SUMOylation event can trigger significant downstream effects, particularly in transcriptional repression and DNA repair.

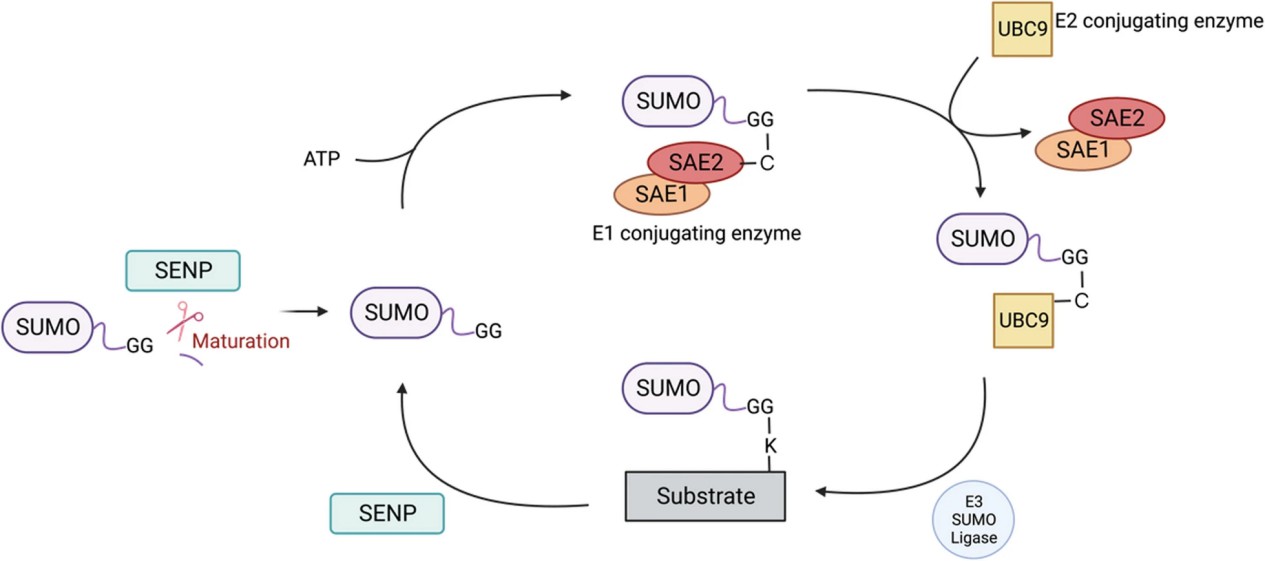

Figure 1. Model of SUMOylation. (Huang C H, et al., 2024)

Techniques for SUMOylation Quantitative and Qualitative analysis

Mass Spectrometry-Based Identification of SUMOylated Proteins

Mass spectrometry (MS) is a powerful tool for quantitative and qualitative analysis pf SUMOylated proteins and pinpointing the exact modification sites. It provides a comprehensive, high-resolution analysis of complex protein mixtures. The process generally involves the following steps:

• Affinity Purification: To enrich SUMO-modified proteins, researchers often use tagged SUMO constructs (e.g., His-SUMO or FLAG-SUMO) or antibodies specific to SUMO. This step removes unmodified proteins, ensuring a more focused analysis.
• Protease Digestion: After purification, the sample is digested using proteases such as trypsin. SUMO leaves a distinct diGly (diglycine) remnant on lysine residues at the attachment site, serving as a molecular signature.
• MS Analysis: Advanced MS instruments, including tandem MS (MS/MS) systems, identify SUMOylated peptides based on their mass-to-charge ratio (m/z). MS/MS can further fragment the peptides to provide detailed sequence information and confirm modification sites.
• Data Interpretation: Computational tools like MaxQuant or PEAKS are used to analyze MS data and identify SUMOylated sites. These tools can also differentiate between SUMO isoforms and detect polySUMO chains.

Immunodetection Methods for Visualizing SUMOylation

For researchers seeking to detect SUMOylation in specific proteins, biochemical techniques using antibodies offer a more targeted approach. Two primary methods are commonly applied:

• Western Blotting: SUMO-specific antibodies or epitope-tagged SUMO constructs are used to detect SUMOylated proteins in cell lysates. Due to the size shift caused by SUMO conjugation (about 10–12 kDa), SUMOylated forms often appear as higher molecular weight bands.
• Immunoprecipitation (IP): In this technique, antibodies against SUMO or the target protein are used to selectively pull down SUMO-modified proteins from a complex mixture. Coupled with Western blotting or MS, this method confirms SUMOylation and identifies interacting partners.

Genetic Approaches to Study SUMOylation

Genetic manipulation is a valuable strategy for understanding the biological roles of SUMOylation. Researchers frequently apply the following genetic tools:

• Site-Directed Mutagenesis: By replacing lysine residues (SUMO attachment sites) with arginine or alanine, researchers can generate SUMO-deficient protein variants. This allows for direct assessment of how SUMOylation impacts protein function.
• SUMO-Trapping Constructs: SUMO traps are engineered proteins that contain tandem SUMO-interacting motifs (SIMs). They capture SUMOylated proteins for subsequent analysis, enhancing the detection of low-abundance targets.
• Knockdown or Knockout Models: Gene silencing using RNA interference (RNAi) or CRISPR/Cas9 genome editing can be used to reduce or eliminate the expression of SUMO pathway enzymes (e.g., E1, E2, or E3 ligases). This helps clarify the physiological role of SUMOylation.

Live-Cell Imaging and Functional Analysis

To observe SUMOylation in real time, researchers employ fluorescent tags and live-cell imaging techniques. This dynamic approach offers a clearer understanding of how SUMOylation influences cellular events.

• Fluorescent Protein Tagging: Fusion proteins with fluorescent tags (e.g., GFP-SUMO or RFP-SUMO) are expressed in cells. By tracking fluorescence signals under a microscope, scientists can monitor SUMOylation dynamics in response to stimuli such as DNA damage or stress.
• Fluorescence Resonance Energy Transfer (FRET) and Bioluminescence Resonance Energy Transfer (BRET): These advanced imaging techniques measure protein-protein interactions in live cells. FRET-based SUMO sensors can detect conformational changes and protein modifications in real time.
• Proximity Ligation Assay (PLA): PLA uses antibodies conjugated to oligonucleotides to detect SUMOylated proteins in fixed cells. If two proteins are in close proximity, the oligonucleotides produce a fluorescence signal, enabling visualization of protein interactions.

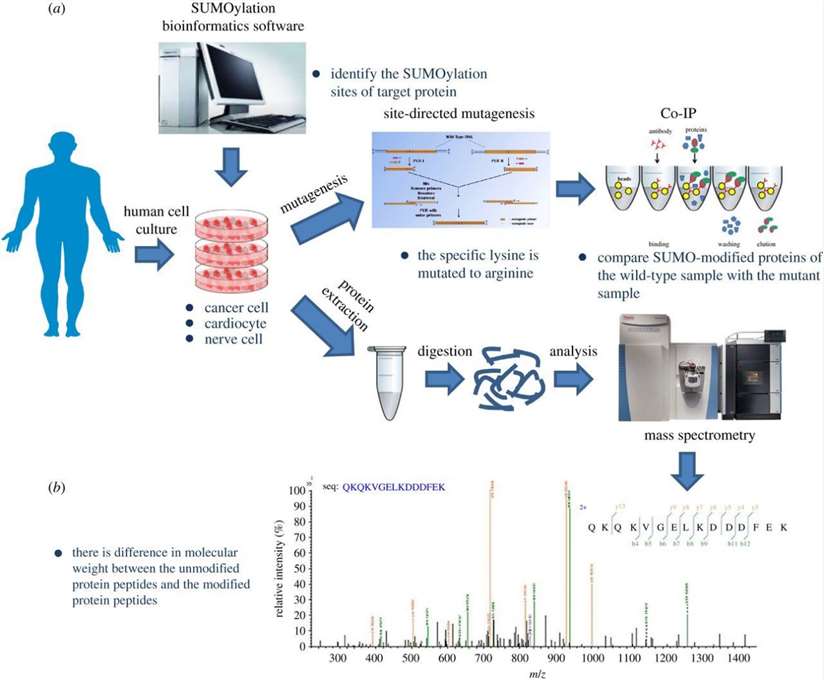

Figure 2. Several methods to identify SUMOylation site. (Yang Y, et al., 2017)

SUMOylation and Protein-Protein Interactions

The molecular consequences of SUMOylation extend to the modulation of protein-protein interactions. SUMO conjugation can either mask or expose binding surfaces, thereby influencing the assembly or disassembly of protein complexes. Critical to this process are non-covalent SUMO-interaction motifs (SIMs), which facilitate the recruitment of downstream effectors and play a decisive role in signal transduction pathways. These interactions underscore the versatility of SUMOylation as a regulatory mechanism within the cellular milieu.

Biological Functions of SUMOylation

Regulation of Protein Stability and Degradation

SUMOylation can confer protection against ubiquitin-mediated degradation by competing for the same lysine residues or by recruiting stabilizing factors. In some instances, the reversible addition of SUMO promotes the formation of multi-protein complexes that shield substrates from proteolytic pathways.

Control of Transcriptional Activity

SUMOylation is indispensable for proper cell-cycle progression. It regulates mitotic events, including disassembling septin rings after cytokinesis and maintaining chromatid cohesion. Alterations in SUMO dynamics can influence the fidelity of cell division and are linked to aberrations in cell-cycle control.

DNA Damage Response and Genome Stability

The DNA damage response (DDR) is critically dependent on SUMOylation. Key DNA repair enzymes, such as thymine DNA glycosylase (TDG), require SUMOylation for catalytic turnover. In TDG, SUMO modification induces a conformational change that facilitates its release from abasic sites, thereby ensuring efficient base excision repair and the maintenance of genomic integrity.

Nuclear Transport and Subcellular Localization

SUMOylation influences the intracellular trafficking of proteins, notably by altering their affinity for nuclear transport receptors. For example, the SUMOylation of RanGAP1 facilitates its translocation to the nuclear pore complex, underscoring the role of SUMO modifications in orchestrating subcellular localization.

Cell Cycle Progression and Mitosis

SUMOylation is indispensable for proper cell-cycle progression. It is involved in the regulation of mitotic events, including the disassembly of septin rings after cytokinesis and the maintenance of chromatid cohesion. Alterations in SUMO dynamics can influence the fidelity of cell division and are linked to aberrations in cell-cycle control.

SUMOylation in Stress Response Mechanisms

Environmental and intracellular stressors such as heat shock, oxidative stress, and nutrient deprivation lead to a global upregulation of SUMO conjugation. This rapid response mechanism enables cells to modulate protein interactions and restore homeostasis under adverse conditions.

SUMOylation in Human Diseases

Role in Neurodegenerative Disorders

Aberrant SUMOylation has been implicated in neurodegenerative diseases, including Huntington's, Parkinson's, and Alzheimer's diseases. In these pathologies, altered SUMO modification of key proteins contributes to the formation of toxic aggregates and impairs neuronal function. Targeted modulation of SUMOylation may offer novel therapeutic avenues to mitigate neurodegeneration.

SUMOylation Dysregulation in Cancer

Elevated levels of SUMO-conjugating enzymes have been observed in various malignancies, suggesting that dysregulated SUMOylation contributes to tumorigenesis. For instance, enhanced SUMOylation of transcription factors and oncogenic regulators has been linked to aberrant cell proliferation and resistance to apoptosis. Consequently, the SUMO pathway represents a promising target for anticancer therapeutics.

Implications in Cardiovascular Diseases

In cardiovascular pathology, SUMOylation modulates the function of proteins involved in cardiac remodeling, endothelial function, and vascular homeostasis. Altered SUMOylation of proteins such as ion channels and phosphatases can precipitate detrimental effects, including fibrosis and compromised vascular integrity. Understanding these molecular alterations is crucial for the development of novel interventions in cardiovascular diseases.

Potential as a Therapeutic Target

Given its central role in regulating protein function and maintaining cellular homeostasis, SUMOylation is emerging as a therapeutic target across a spectrum of diseases. Small-molecule inhibitors or modulators that selectively alter the SUMO conjugation cascade hold significant promise in clinical applications, from neurodegeneration to oncology and cardiology.

Case Study

Detecting endogenous SUMO targets in mammalian cells and tissues

Journal: Nature Structural & Molecular Biology

Published: 2013

DOI: 10.1038/nsmb.2526

Background

SUMOylation is a critical post-translational modification that regulates numerous proteins in eukaryotic cells, yet its low abundance and dynamic nature make endogenous detection challenging.

Purpose

The study aimed to develop an efficient, reliable method for enriching and identifying endogenous SUMOylated proteins (both mono- and poly-SUMOylated) in mammalian cells and tissues, thereby enabling direct comparison of SUMO1- and SUMO2/3-modified proteomes.

Methods

The authors used monoclonal antibodies targeting SUMO1 and SUMO2/3 for immunoprecipitation, followed by peptide elution to enrich SUMOylated proteins. Mass spectrometry (LC-MS/MS) was then employed for protein identification. The method was validated using HeLa cells and mouse liver tissue.

Results

• A comprehensive list of 584 endogenous SUMO1- and SUMO2/3-modified proteins was identified.
• 40% of the proteins were preferentially modified with SUMO1, while 10% showed preference for SUMO2/3.
• Significant overlap was observed between the study's candidate proteins and previously identified SUMOylation targets under heat shock, indicating basal monoSUMOylation in unstressed cells.
• The study also highlighted factors influencing paralog-specific SUMOylation, including E3 ligases, SUMO-interacting motifs (SIMs), and isopeptidase activity.

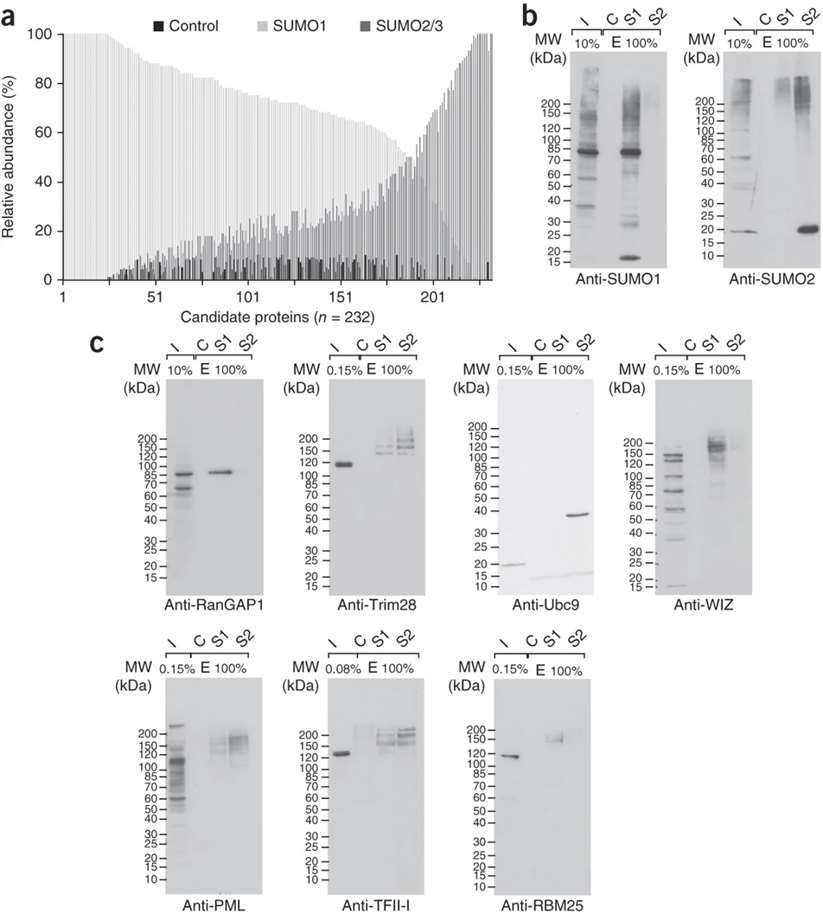

Figure 3. SUMOylated proteins enriched from asynchronously growing HeLa suspension cells by immunoprecipitations and peptide elutions were identified by MS analysis.

Conclusion

The newly established method provides a reliable and accessible approach for studying endogenous SUMOylation, facilitating proteome-wide analysis. This advancement will support future research into SUMOylation dynamics, mechanisms of paralog specificity, and the functional roles of SUMOylated proteins in cellular regulation.

References

• Geiss-Friedlander R, Melchior F. Concepts in sumoylation: a decade on. Nature reviews Molecular cell biology, 2007, 8(12): 947-956. DOI: 10.1038/nrm2293
• Huang C H, Yang T T, Lin K I. Mechanisms and functions of SUMOylation in health and disease: a review focusing on immune cells. Journal of Biomedical Science, 2024, 31(1): 16. DOI: 10.1186/s12929-024-01003-y
• Yang Y, et al. Protein SUMOylation modification and its associations with disease. Open biology, 2017, 7(10): 170167. DOI: 10.1098/rsob.170167
