Ubiquitination: Mechanisms, Mass Spectrometry, and the Role in Cellular Regulation

What is Ubiquitination?

Ubiquitination, or ubiquitylation, is the covalent attachment of a ubiquitin molecule—a 76–amino acid polypeptide—to a substrate protein. This modification may occur as monoubiquitination, where a single ubiquitin is attached, or polyubiquitination, wherein ubiquitin molecules form polymeric chains through successive linkages. Ubiquitination governs diverse biological phenomena ranging from protein degradation to signal transduction and subcellular localization, thereby underscoring its indispensable role in cellular regulation and disease, and adopting appropriate techniques for ubiquitination analysis is crucial for understanding post-translational modifications (PTMs).

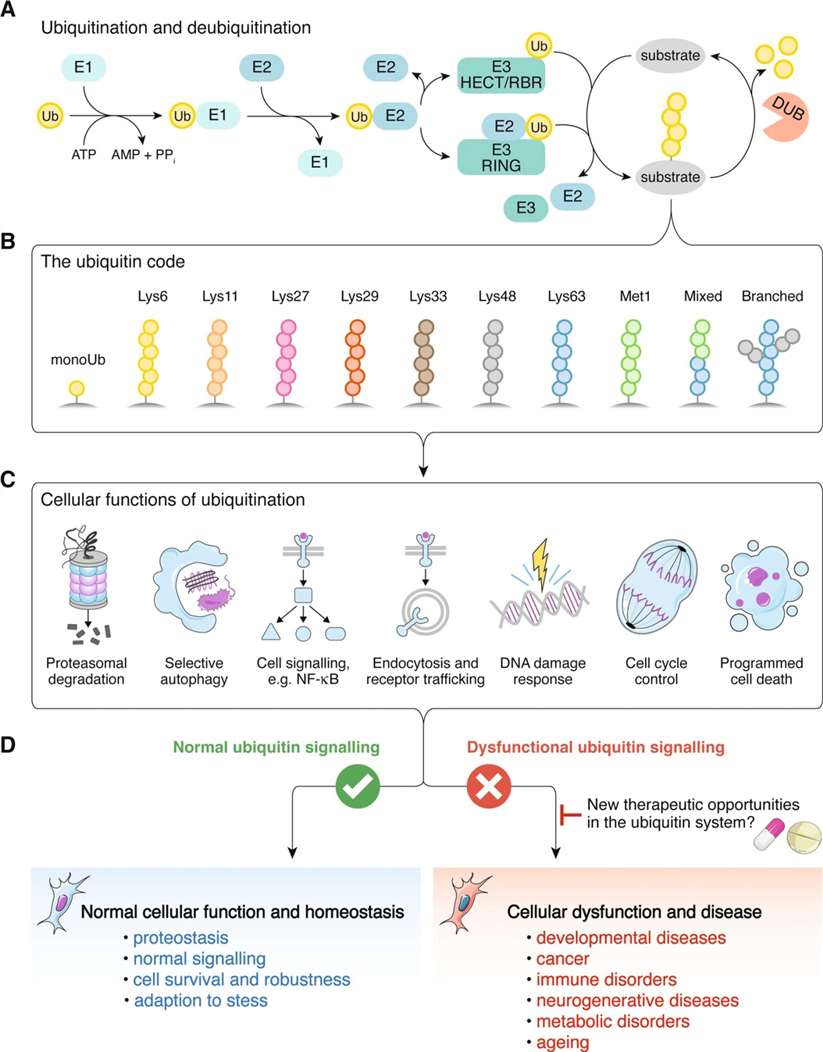

Figure 1. Ubiquitin signalling in cell biology and disease. (Damgaard R B. 2021)

Fundamentals of the Ubiquitination Process

The Ubiquitination Enzymatic Cascade (E1, E2, E3)

The ubiquitination process is orchestrated by a sequential enzymatic cascade that involves three principal classes of enzymes:

Ubiquitin-Activating Enzyme (E1): In an adenosine triphosphate (ATP)–dependent manner, E1 catalyzes the activation of ubiquitin. This involves the formation of a ubiquitin-adenylate intermediate followed by the establishment of a thioester bond between the ubiquitin carboxyl terminus and a cysteine residue in the E1 enzyme.

Ubiquitin-Conjugating Enzyme (E2): Following activation, ubiquitin is transferred to the active-site cysteine of an E2 enzyme. The E2 enzymes, which are numerous and highly conserved, serve as carriers that facilitate the subsequent transfer of ubiquitin.

Ubiquitin-Protein Ligase (E3): The E3 ligases confer substrate specificity by recognizing and binding target proteins. They catalyze the formation of an isopeptide bond between the ε-amino group of a lysine residue on the substrate and the C-terminal glycine of ubiquitin. E3 ligases are broadly classified into two groups:

• HECT Domain E3 Ligases: These enzymes form a transient thioester intermediate with ubiquitin before transferring it to the substrate.
• RING Domain E3 Ligases: These function by facilitating direct transfer of ubiquitin from the E2 enzyme to the substrate, either as single subunit proteins or as part of multi-subunit complexes.

Reversibility: Role of Deubiquitinating Enzymes (DUBs)

Ubiquitination is a reversible process. Deubiquitinating enzymes (DUBs) break the isopeptide bond between ubiquitin and the substrate. This action changes the ubiquitin signal. The reversibility is key for keeping cellular protein balance. It also allows flexible control of ubiquitin-related processes. DUBs make sure ubiquitination does not go unchecked. This helps avoid unwanted protein degradation or misplacement.

Mechanisms and Molecular Details of Ubiquitination

Ubiquitin Conjugation Process

Ubiquitination entails a sophisticated conjugation mechanism whereby ubiquitin is covalently linked to substrate proteins. The process involves the following steps:

Activation: Ubiquitin is activated via ATP-dependent formation of a ubiquitin-adenylate intermediate, which subsequently forms a thioester bond with the catalytic cysteine of E1.

Conjugation: The activated ubiquitin is transferred to the catalytic cysteine of an E2 enzyme through a transesterification reaction.

Ligation: The E3 ligase facilitates the final transfer of ubiquitin to the substrate, forming an isopeptide bond with a lysine residue. This ligation can result in the attachment of a single ubiquitin (monoubiquitination) or the formation of polyubiquitin chains.

Deubiquitinating Enzymes and Reversibility

DUBs play a critical role in the regulation of ubiquitin signaling. They catalyze the removal of ubiquitin molecules from substrates, thereby reversing the modification and allowing for the precise temporal and spatial control of ubiquitination. This dynamic interplay between ubiquitination and deubiquitination is essential for normal cellular function and the rapid adaptation to stress or signaling cues.

Ubiquitin Chain Types and Linkages

Ubiquitin itself contains seven lysine residues (K6, K11, K27, K29, K33, K48, K63) and an N-terminal methionine, each of which can serve as a site for chain formation. The linkage type dictates the biological outcome:

Lys48-Linked Chains: Predominantly target substrates for proteasomal degradation.

Lys63-Linked Chains: Are implicated in non-proteolytic functions such as DNA repair, endocytosis, and signal transduction.

Atypical Linkages: Other linkages, like K6, K11, K27, K29, K33, and linear M1-linked chains, play roles in various cellular processes. However, their functions are not as clearly understood. The complexity of polyubiquitin chain structure, including length and branching, adds another layer of regulation to ubiquitin signaling.

Quantitative and Qualitative Analysis of Ubiquitination

MS-Based Proteomic Strategies: Bottom-Up, Middle-Down, and Top-Down

Mass spectrometry (MS) has emerged as an indispensable tool for the quantitative and qualitative of ubiquitination. The principal MS-based approaches include:

• Bottom-Up Proteomics: It involves breaking down proteins into peptides using proteolytic digestion. Then, liquid chromatography-tandem mass spectrometry (LC–MS/MS) identifies these peptides. This method allows for high-throughput detection of ubiquitination sites through diGly remnants. However, it often loses details about the structure of ubiquitin chains.
• Middle-Down Proteomics: Utilizes limited proteolysis to generate larger peptide fragments, thereby preserving more structural information about ubiquitin chain topology. Strategies such as Ub-clipping employ engineered proteases to yield characteristic fragments that reveal chain branching and linkage types.
• Top-Down Proteomics: Direct analysis of intact proteins without enzymatic digestion. Top-down proteomics offers the most comprehensive characterization of ubiquitin chain architecture, including chain length, linkage, and branching, although it faces technical challenges related to the fragmentation of high molecular weight species.

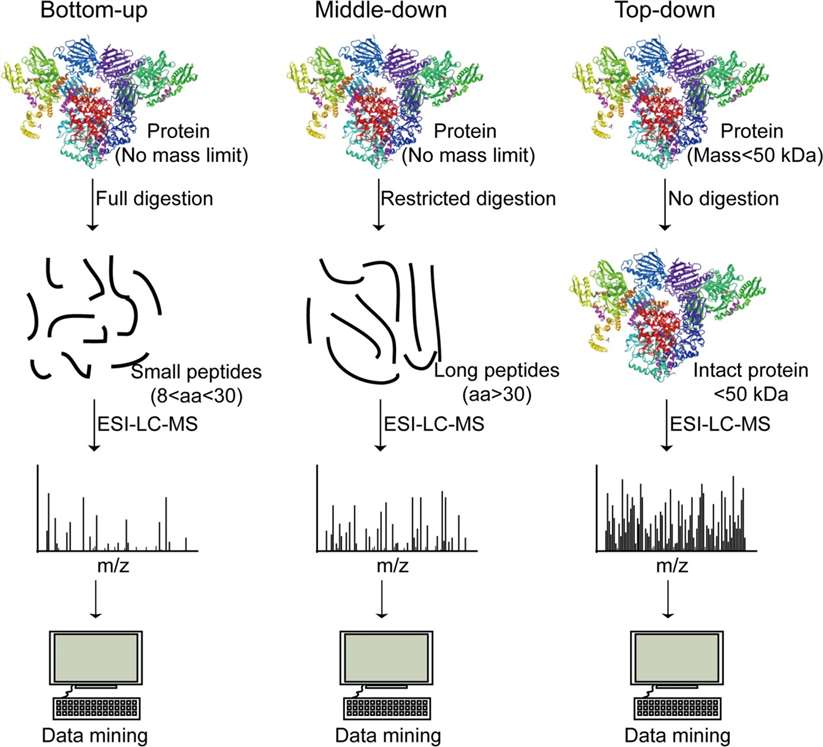

Figure 2. Schematic workflow of bottom-up proteomics, middle-down proteomics, and top-down proteomics. (Sun M, et al., 2022)

Relative Quantification

Utilizes label-based approaches (e.g., SILAC, TMT, iTRAQ) or label-free strategies to compare ubiquitination levels across different biological states. Although these methods provide insight into changes in ubiquitination dynamics, they do not directly inform on the stoichiometry of modifications.

Absolute Quantification

Methods like Ubiquitin-AQUA (Ub-AQUA) and Ubiquitin-Protein Standard Absolute Quantification (Ub-PSAQ) use isotopically labeled peptides or proteins as internal standards. These methods help accurately measure ubiquitin chain stoichiometry and concentration. This provides key quantitative data for understanding cellular ubiquitin dynamics.

Computational Approaches to Ubiquitination Prediction

Machine Learning Models and Prediction Tools

Recent years have witnessed the development of sophisticated machine learning models designed to predict ubiquitination sites based on sequence motifs and physicochemical properties. Tools such as UbiPred, HUbipPred, DeepUbi, and hCKSAAP_UbSite leverage support vector machines (SVMs), deep neural networks, and binary encoding strategies to discern patterns indicative of ubiquitination. These computational approaches significantly expedite hypothesis generation for experimental validation.

Integrating Bioinformatics with Experimental Data

Even with advances in computational prediction, ubiquitin chain complexity requires combining bioinformatics with high-resolution experiments. Merging computational predictions with MS-based proteomic data helps identify and validate ubiquitination sites and chain structures. This approach uncovers new regulatory mechanisms and potential therapy targets.

Ubiquitination in Cellular Function and Regulation

Role in Protein Degradation and Signal Transduction

Ubiquitination is key for sending proteins to the 26S proteasome for degradation. This process helps remove damaged or unneeded proteins. Ubiquitin also acts as a signal for endocytosis, subcellular transport, and adjusting signal pathways. For example, when IκBα is ubiquitinated, it gets degraded. This allows NF-κB to enter the nucleus and trigger inflammation-related responses.

Regulation of Cellular Processes

Endocytosis: Monoubiquitination and Lys63-linked polyubiquitination facilitate the internalization and sorting of membrane proteins.

DNA Repair: Specific ubiquitin chain linkages modulate the recruitment of DNA repair proteins to sites of damage.

Additional Processes: Ubiquitination also regulates cell cycle progression, apoptosis, and immune responses, thereby influencing cell proliferation and survival.

Ubiquitination in Disease and Pathophysiology

Ubiquitination Dysregulation in Cancer and Neurodegeneration

Cancer: Dysregulation of E3 ligases, such as the mutation-induced loss of function in the VHL tumor suppressor, leads to the accumulation of oncogenic proteins. Similarly, aberrant ubiquitination of cell cycle regulators can precipitate uncontrolled cellular proliferation.

Neurodegenerative Diseases: The accumulation of ubiquitinated protein aggregates is a hallmark of disorders such as Alzheimer's, Parkinson's, and amyotrophic lateral sclerosis (ALS). Impaired proteasomal degradation contributes to neuronal dysfunction and degeneration.

Genetic Disorders Linked to Ubiquitination Pathway Defects

Angelman Syndrome: Resulting from mutations in the UBE3A gene, this disorder underscores the role of E3 ligases in normal cognitive function.

3-M Syndrome: Mutations in CUL7, an essential component of E3 ubiquitin ligase complexes, lead to growth retardation and developmental abnormalities.

Case Study

The Mechano-Ubiquitinome of Articular Cartilage: Differential Ubiquitination and Activation of a Group of ER-Associated DUBs and ER Stress Regulators

Journal: Molecular & Cellular Proteomics

Published: 2022

DOI: S1535-9476(22)00227-4

Background

Articular cartilage injury is a key factor in osteoarthritis development. Previous studies have shown that mechanical injury induces an increase in lysine-63 polyubiquitination, suggesting a role for ubiquitination in early cellular responses to injury, particularly relating to ER stress and deubiquitinating enzyme (DUB) regulation.

Purpose

The study aimed to characterize the "mechano-ubiquitinome" of articular cartilage, identifying differential ubiquitination patterns and linking them to ER stress responses and DUB activity following mechanical injury.

Methods

• Experimental Design: Porcine articular cartilage was subjected to mechanical injury, and samples were collected at 0, 10, and 30 minutes post-injury.
• Mass Spectrometry Analysis: Ubiquitinated peptides were enriched using anti-K-ε-GG antibodies and analyzed by LC–MS/MS to determine ubiquitination changes. The global proteome was also assessed.
• Bioinformatics: STRING and Perseus software were used for pathway and protein–protein interaction analysis.
• Validation: Western blot and ubiquitin enrichment assays were performed to confirm ubiquitination patterns and DUB activity.
• Disease Relevance: DUB activity was analyzed in human osteoarthritic cartilage, and an in vivo zebrafish tail-fin injury model was used to assess ER stress responses.

Results

• Identified 463 ubiquitinated peptides, with significant enrichment at 30 minutes post-injury.
• Key proteins in ER-associated degradation (ERAD) and DUBs (e.g., YOD1, ATXN3, USP5) were differentially ubiquitinated.
• Enhanced DUB activity was observed post-injury, and ER stress markers (e.g., CHOP, GRP78, XBP1) were upregulated.
• Network analyses revealed enrichment of pathways related to protein processing in the ER, endocytosis, and metabolic processes.
• Similar ER stress responses were observed in zebrafish injury models and human osteoarthritic cartilage.

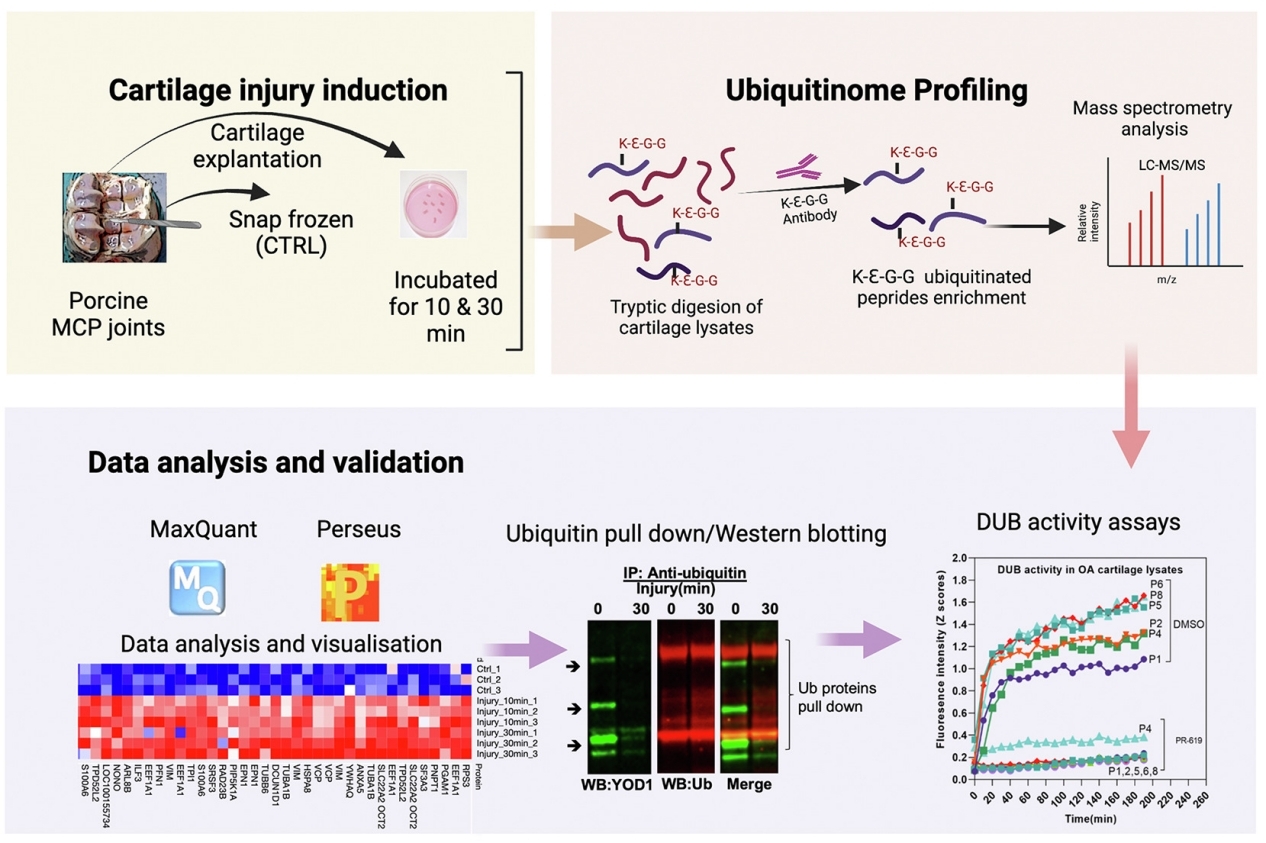

Figure 3. Graphical abstract for the mechano-ubiquitinome of articular cartilage study.

Conclusion

The study shows that mechanical injury creates a distinct ubiquitin signature in articular cartilage. This signature quickly affects proteins linked to ER stress and DUB regulation. The response to injury may lead to cartilage degeneration in osteoarthritis. Targeting certain ubiquitination events and DUB activities could provide new treatment options.

References

• Damgaard R B. The ubiquitin system: from cell signalling to disease biology and new therapeutic opportunities. Cell Death & Differentiation, 2021, 28(2): 423-426. DOI: 10.1038/s41418-020-00703-w
• Sun M, Zhang X. Current methodologies in protein ubiquitination characterization: from ubiquitinated protein to ubiquitin chain architecture. Cell & Bioscience, 2022, 12(1): 126. DOI: 10.1186/s13578-022-00870-y
