IP‑MS Workflow Design: Controls, Replicates, and Planning That Prevents Rework

Rework in IP‑MS is expensive. Most failures trace back to design—not instrument sensitivity. A resilient ip-ms workflow starts with a clear claim and locks in negative control strategy and replicates before a single sample is lysed. In the first 100 words, let's be explicit: we'll build an ip-ms workflow that bakes in a negative control plan and replicates that a reviewer will trust.

Key takeaways

• Start with a claim statement and design to prove it. Decide controls, replicates, and outputs up front.
• Treat background as a variable you measure and manage, not as "noise."
• Write thresholds before you see the volcano plot. Transparency prevents parameter‑shopping.
• Prefer biological over technical replication for confidence in endogenous co‑IP.
• Use a tiered blueprint: Minimum publishable → Reviewer‑friendly → Mechanism‑ready.

Why IP‑MS projects fail: it's usually workflow design, not instrument sensitivity

Here's the rework math. Miss a key control, and you repeat the whole run. Underpower replicates, and your effect sizes wobble. Leave thresholds undefined, and analysis turns into a guessing game. Contemporary reviews emphasize up‑front planning of controls, replicate architecture, and FDR/effect‑size reporting to prevent do‑overs and reviewer pushback. See discussions in 2022–2026 methods and reviews covering AP‑MS/IP‑MS design and analysis norms.

According to recent peer‑reviewed guidance, most rework stems from unclear negative controls, confusion between biological and technical replicates, and post hoc analysis choices—not from a lack of MS sensitivity.

The rework loop you want to avoid

Background runs high. You tighten washes and lose signal. You swap antibodies and invalidate comparisons. You then adjust thresholds after the fact to "rescue" findings. The fix is boring but effective: define the claim, write the control/replicate plan, pre‑register analysis thresholds, then start sample prep.

Start with the claim: what are you trying to prove?

Decision to make now: what will the figures need to show? For this guide, the default scenario is endogenous co‑IP from native lysate, and our primary claim focus is complex composition shift. That means your design must show that specific subunits are differentially enriched, lost, or newly recruited across conditions beyond the negative‑control baseline.

Two prompts keep teams aligned:

• What change are we asserting? Presence/absence, enrichment change, composition shift, or target engagement/MoA?
• What minimal evidence will convince a skeptical reviewer, assuming typical variability in endogenous co‑IP?

Claim types and required evidence (endogenous co‑IP focus)

Below is a compact matrix for planning. It orients the whole ip‑ms workflow toward figures and acceptance criteria that pass review without back‑and‑forth.

Define success metrics before you IP

Don't over‑specify numbers in the plan; state auditable criteria. Examples you can adapt:

• Enrichment: "Report effect sizes and q‑values for all detected preys; candidates must exceed the negative‑control baseline by predefined thresholds."
• Background ceiling: "Document negative‑control binders and show that sentinel contaminants do not drive the observed pattern."
• Replicates: "Demonstrate stable effect direction across biological replicates with declared filtering and FDR control."

If you need numeric acceptance gates (CVs, IDs per run, missingness), push details to your QC plan and link to your internal SOP. For public reporting, keep phrasing transparent and method‑centric.

For deeper protocol thinking and common traps, see the Endogenous Co‑IP‑MS protocol checklist in our resource hub: Endogenous Co‑IP‑MS protocol checklist and failure modes.

Controls: the reviewer‑proof set (core + optional)

Decision to make now: which controls must ship in every batch, and which optional controls are triggered by risk? Controls answer specific reviewer questions. Map each control to the doubt it resolves.

Core controls you should never skip

• Input. What it answers: "Are changes driven by input abundance or by specific enrichment?" Input anchors expression/background and supports enrichment calculations and missingness diagnostics. Run it condition‑matched.
• IgG/isotype. What it answers: "How much non‑specific binding lives in this matrix?" IgG sets a baseline for sticky proteins and enables negative‑control enrichment or probability scoring.
• Beads‑only (when bead chemistry or lots change, or prior data are unknown). What it answers: "Are there bead‑matrix binders or leachates that inflate background?"
• KO/KD genetic negative (Tier 2 assumption in this guide). What it answers: "Does the antibody pull down off‑targets or paralogs?" It is the strongest specificity test when feasible.
• Mock IP / tag control (if using tagged systems). What it answers: "Is the tag or vector driving interactions?" For our default endogenous scenario, keep this as an alternative, not a default.

See a concise protocol‑first perspective here: Co‑immunoprecipitation service overview and decision points.

Optional controls that save you in revision

• Competition peptide (if the epitope is known). Defuses specificity objections without genetic edits.
• Reciprocal IP (swap bait/prey). Reinforces key edges and reduces antibody idiosyncrasies.
• Crosslink vs native paired runs. Probes transient assemblies; report trade‑offs in background and identification counts.

For a broader interactomics framing and what reviewers now expect beyond gels, see why complementary methods matter: Why Western blot is not enough under 2026 reviewer standards.

How to document controls in Methods

Copy‑adapt these sentences. Avoid brand names; keep it system‑specific:

• "We performed endogenous co‑immunoprecipitation from native lysates. Negative controls included matched IgG (species/isotype) and beads‑only pulldowns processed in parallel. Input lysates were retained for enrichment calculations. For specificity, a KO/KD line was processed identically."
• "Common contaminant proteins were screened using experiment‑matched negative controls and a contaminant reference. Candidate interactors were required to exceed predefined fold‑change and/or probability thresholds."
• "Deliverables comprised enrichment tables with q‑values, a volcano plot with negative‑control overlay, and run‑level QC (identifications, replicate agreement, missingness)."

For an end‑to‑end analysis perspective including filtering and FDR, see the IP‑MS data analysis workflow (filtering, normalization, FDR).

Replicates: design for confidence, not just "n=3"

Decision to make now: what is the minimal biological n that supports your claim, and when do technical repeats add value? In endogenous co‑IP, biological replication drives inference. Technical repeats help diagnose precision during piloting but cannot replace biological variation.

Biological vs technical replicates

• Biological replicates are independent cultures or preparations. They capture real variability and power your condition comparisons.
• Technical replicates repeat LC‑MS injections or split preparations. They check process precision and can be down‑weighted or combined in modeling, but they do not add biological signal.

A minimal replicate plan by study type (endogenous co‑IP)

• Interaction discovery. Minimum: three biological replicates per condition in label‑free designs. Ideal: multiplexed labels to reduce batch burden; pooled reference optional. Randomize extraction and injection order.
• Validation/orthogonal confirmation. Minimum: two to three biological replicates per condition; add reciprocal IP for sentinel interactors; KO/KD where feasible.
• Drug MoA / target engagement. Minimum: three biological replicates per condition; consider targeted overlays (PRM/AQUA) for stoichiometry or occupancy on key subunits.

Batch planning: randomization and blocking

Don't put all treated samples into one prep or one injection block. Randomize prep order and injection order. Block so each batch has a balanced representation of conditions. Track lots. If you expect multiple batches, add pooled QC injections at intervals and plan for batch‑aware downstream checks.

For project‑scoped interactomics planning that includes study type choices, see the IP‑MS protein interactomics solution overview.

Background and "sticky proteins": plan reduction and measurement upfront

Decision to make now: which levers will you adjust to tame background, and how will you quantify its impact? Background is not mere noise; it's a variable that shifts with matrix, antibody, and buffers. Treat it as such, and you will prevent most "redo washes, lose signal" loops.

Background is not noise—it's a variable

Many proteins bind non‑specifically in AP‑MS datasets. Use experiment‑matched negatives (IgG, beads‑only) to estimate your project's baseline. Combine with a contaminants reference list to flag frequent flyers. The goal isn't to erase background but to measure, report, and design around it.

Practical levers that affect background

Wash stringency and time. Salt and detergent choices. Lysis time and temperature. Bead chemistry and capacity. Adjust only one or two parameters per pilot and compare against the same negative control. Document the final conditions in Methods and keep them constant across batches.

How to quantify background in reporting

Declare how you compute negative‑control enrichment (e.g., fold change vs IgG) and how that maps to candidate acceptance. Pair effect sizes with adjusted q‑values. In figures, overlay negative‑control information on the volcano plot or provide a separate panel that summarizes baseline enrichment in controls.

Data analysis planning: decide thresholds before you see the volcano plot

Decision to make now: what filters, missing‑value strategy, test, and FDR will you use—and what outputs will you expect? Write them down. Share with the team. Stick to them unless a pre‑declared exception arises.

Predefine filtering and statistical approach

• Filtering. Remove obvious contaminants based on negatives and a contaminants list. State the rule in Methods.
• Missing values. Avoid blunt left‑tail imputation that inflates false discovery under high missingness. Prefer models or workflows that account for detection dependence, or analyze without imputation when feasible.
• Statistics and FDR. Use appropriate models for differential interaction analysis. Report adjusted q‑values and effect sizes. Control peptide/protein‑level FDR at a conventional level and be explicit about how it was estimated.

What outputs to expect (and request)

Request these deliverables at project kickoff:

• Protein/enrichment tables with effect sizes and q‑values.
• Volcano plot with negative‑control overlay.
• QC summary: replicate‑level IDs, correlations, missingness.
• Methods summary: controls, replicates, filters, FDR—short and auditable.

For a step‑by‑step view into post‑acquisition processing choices, see the IP‑MS data analysis workflow.

Common analysis mistakes that trigger reviewer pushback

Opaque thresholds. No comparison to negative controls. Reporting only p‑values without effect sizes. Inconsistent filtering across conditions. Not declaring how missing values were handled. All are preventable with a one‑page analysis plan created before acquisition.

A workflow blueprint: choose one of three design tiers

Use this blueprint to move fast without rework. Pick a tier that matches your stakes and resources. Then copy the acceptance gates into your project plan.

IP‑MS workflow design blueprint showing controls, replicates, background assessment, and analysis planning to prevent rework.

Tier 1: Fast validation (minimum publishable)

Use when you need confirmatory evidence or orthogonal support for a few edges.

• Controls. Input; IgG/isotype; beads‑only if new bead chemistry.
• Replicates. Biological ≥3/condition (LFQ) or multiplexed labels with ≥2/condition.
• Analysis. Predeclared filtering; adjusted q‑values; effect sizes; volcano with negative‑control overlay.
• Acceptance gates. Consistent effect direction across biological replicates; candidates exceed negative‑control baseline by predefined criteria; QC summary shows stable IDs and correlations.

Tier 2: Reviewer‑friendly gold standard (assumes KO/KD available)

Use when composition shift is central to the manuscript's claims.

• Controls. Tier 1 + KO/KD genetic negative; consider reciprocal IP on sentinel preys.
• Replicates. Biological ≥3/condition; batch randomization and blocking documented; pooled QC optional.
• Analysis. Probability‑ or score‑based interactor calling against negatives; effect‑size tables with q‑values; background metrics reported.
• Acceptance gates. KO/KD negatives eliminate bait‑free enrichment; volcano and tables reflect predeclared thresholds; QC summary covers replicate agreement, IDs per run, and missingness profile.

Tier 3: Mechanism‑ready complex study

Use when you aim to map remodeling under treatment/time or to support MoA.

• Controls. Tier 2 + reciprocal IP on key edges; consider crosslink/native pairing to probe stability.
• Replicates. Biological ≥3/condition with clear batch design; multi‑batch logistics spelled out; pooled QC injections across batches.
• Analysis. Pre‑registered plan; group‑aware multiple‑testing strategies as needed; targeted overlays (PRM/AQUA) for stoichiometry or occupancy if relevant.
• Acceptance gates. Reproducible direction/magnitude across conditions; background quantified and controlled; all thresholds documented pre‑acquisition.

For targeted quant overlays that often strengthen Tier 3 interpretation, review our neutral overview of absolute quantification by AQUA for targeted proteins.

Optionally add this planning matrix for quick scoping:

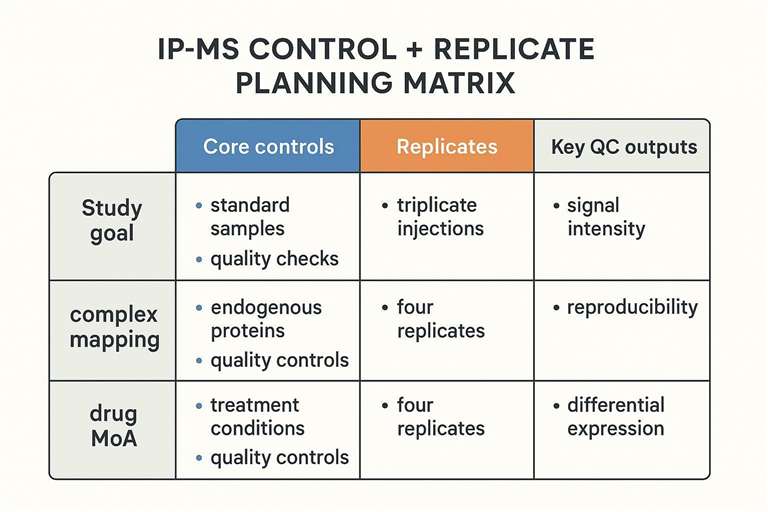

Control and replicate planning matrix for IP‑MS studies across validation, complex mapping, and MoA experiments.

Methods and reporting: copy‑adaptable templates

Use, then tailor to your system.

Controls "We performed endogenous co‑immunoprecipitation from native lysates. Negative controls included matched IgG (species/isotype) and beads‑only pulldowns processed in parallel. Input lysates (x% total protein) were retained for enrichment calculations. For specificity, a KO/KD line was processed identically."

Background handling "Common contaminant proteins were screened using experiment‑matched negative controls and a contaminants reference. Candidate interactors were required to exceed predefined fold‑change and/or probability thresholds."

Missing data and FDR "Peptide/protein inference was controlled at a conventional FDR level. Detection‑dependent missingness was modeled; no global left‑tail imputation was applied for differential analysis. Multiple testing used Benjamini–Hochberg; we report adjusted q‑values and effect sizes."

Deliverables "Deliverables included: protein/enrichment tables with q‑values, volcano plot with negative‑control overlay, replicate‑level QC (IDs, correlations/missingness), and a concise Methods summary documenting controls, replicates, and thresholds."

For a compact overview you can share with collaborators, point them to the proteomics knowledge hub.

Next steps

• Download the editable checklist and paste the acceptance gates into your plan.
• Book a 15‑minute technical consult to sanity‑check your design and deliverables.
• Request a scoped quote if you need added capacity or batching logistics.

If you need a neutral example of what a Tier 2 deliverable package typically contains—enrichment tables with q‑values, a volcano plot overlaid with negative‑control information, and a QC summary of replicate agreement—review the structure described in our IP‑MS data analysis workflow and the high‑level IP‑MS protein interactomics solution overview. These pages show how deliverables are packaged for decision‑making without promising specific performance figures.

References

• Liu X, et al. Mapping protein–protein interactions by mass spectrometry (2024). See overview of controls, contaminants, and interactome strategies in the open‑access review: PMC article detailing AP‑MS/IP‑MS design considerations.
• Guo Y, et al. Protocol for affinity purification–mass spectrometry interactome mapping (2024). Practical STAR Protocols article with control logic and processing order: Open‑access methods article on AP‑MS.
• Jiang Y, et al. Comprehensive overview of bottom‑up proteomics using modern MS (2024). Statistical and workflow framing relevant to FDR/effect sizes: ACS Measures Pages, DOI landing.
• Li M, et al. Modeling intensity‑dependent missingness in MS proteomics (2023). Guidance on handling detection‑dependent missing values: Bioinformatics, DOI page.
• Mou X, et al. Evaluation of imputation vs imputation‑free strategies for MS proteomics (2025). Evidence for avoiding indiscriminate left‑tail imputation: Briefings in Bioinformatics, DOI page.
• Freestone J, et al. Group‑aware multiple‑testing control in target‑decoy competition (2022). Considerations for group‑stratified FDR: Bioinformatics, DOI page.
• Ciuffa R, et al. Multi‑layer AP‑MS dissection of TNF‑RSC remodeling linking composition to condition (2022). Template for composition‑shift thinking: PNAS, DOI page.
