Designing s-nitrosylation proteomics is less about picking a single "best" workflow and more about proving your signal is specific. If your study includes an NO donor, reviewers will ask whether you manufactured nitrosylation rather than measured regulation. The way out is simple but non-negotiable: build negative controls into the group structure, run them through the same pipeline, and anchor both QC and statistics to those controls.
This design guide focuses on the highest-friction setup: KO + donor comparisons. You'll get a table-ready group structure, artifact stop-loss rules, and a reporting package that's easy to audit.
Key Takeaway: Reviewers rarely reject SNO work for being "too small." They reject it for being too easy to explain as an artifact.
Why S-nitrosylation studies fail in review (it's often artifacts and controls)
S-nitrosylation (SNO) is reversible and labile. That's biologically meaningful, but it means your signal can change during collection, handling, enrichment chemistry, and even analysis choices.
From a reviewer's point of view, most failed SNO submissions fail on the same two axes:
- Controls are missing or invisible (reviewers cannot see background, specificity, or control collapse).
- Artifacts are not anticipated (handling and donor confounders are treated as footnotes).
So the goal of a reviewer-proof study is not "more IDs." It is an evidence chain:
- The group design supports interpretable comparisons.
- Negative controls define background and specificity.
- Artifact risks are managed up front (and documented).
- Statistics report effect size and multiple-testing control, anchored to controls.
This guide is built around that chain for KO + NO-donor experiments.
Define the claim before you choose the workflow
Many SNO projects start with chemistry ("we will run a switch/capture workflow") and only later decide what the study is claiming. That sequence invites over-claiming.
Before you choose enrichment, labeling, or quantitation, write a one-sentence claim you want to defend. Then constrain your design to what can actually support that claim.
Examples of claims with different evidence burdens:
- SNO level shift: "The SNO layer increases after donor exposure in WT."
- Site shift: "Specific cysteine sites show genotype-dependent changes."
- Pathway shift: "The interaction contrast highlights genotype-specific redox signaling."
Protein-level vs site-level claims
Protein-level and site-level claims are not interchangeable.
- Protein-level: an enriched signal for a protein changes. This can be valid even if localization is incomplete.
- Site-level: a specific cysteine changes. This requires robust localization, plus stronger control logic.
A reviewer-safe "claim ladder":
- enrichment-level shift → protein shortlist → site-level claims only where localization supports → pathway interpretation with BH-FDR.
Primary endpoint and success metrics
Define one primary endpoint and a small set of success metrics before processing samples.
Practical endpoints in KO + donor SNO studies:
- Fraction of signal that collapses in the no-switch/no-reductant negative control.
- Effect size distribution (log2 fold-change) for the planned contrasts.
- Count of reproducible sites/proteins meeting BH-FDR ≤ 0.05.
These metrics are also acceptance criteria for platform engineers and CRO PMs.
Experimental design for KO + NO-donor comparisons in s-nitrosylation proteomics
KO + donor experiments become un-interpretable when you collapse multiple causal stories into one contrast. The fix is to design the study as a 2×2 structure and plan comparisons explicitly.
Before you finalize the matrix, do one "confounder pass" as if you were writing the reviewer's response letter:
- Genotype confounders: baseline protein abundance shifts, altered antioxidant programs, clonal selection effects (especially in CRISPR knockout cell models), and compensatory pathway rewiring.
- Donor confounders: donor decomposition kinetics, culture medium effects, broad stress responses, and downstream oxidation that can masquerade as SNO.
- Measurement confounders: enrichment efficiency drift, carryover, and batch-to-batch variability.
The purpose of this pass is not to eliminate all confounders. It is to make sure every confounder has a corresponding control, comparison, or reporting disclosure.

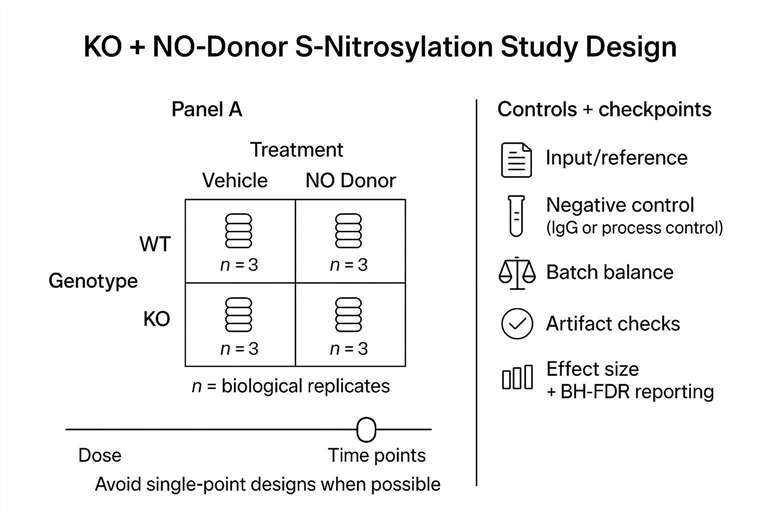

A minimal group structure (table-ready)
Use a 2×2 factorial layout as the default.
| Genotype | Vehicle | + NO donor |
|---|---|---|
| WT | WT vehicle | WT + donor |
| KO | KO vehicle | KO + donor |
This structure supports four reviewer-friendly comparisons:
- Baseline genotype effect: KO vehicle vs WT vehicle
- Donor effect in WT: WT + donor vs WT vehicle
- Donor effect in KO: KO + donor vs KO vehicle
- Interaction (difference-in-differences): (KO donor response) − (WT donor response)
If you can add a rescue arm, keep it optional and purpose-driven:
- Rescue option (optional): KO + rescue (± donor) to test reversibility or pathway specificity.
E-E-A-T note (anonymized): in recent KO breast cancer cell + donor projects, the most common rework request is not MS depth. It is that the study reported only one confounded contrast ("KO + donor vs WT vehicle") and reviewers demanded the missing factorial comparisons.
Time points and dose logic
Avoid single-point, single-dose designs when possible. They can't distinguish immediate donor-driven chemistry from regulated biology.
A practical logic:
- Time points: include an early window (chemistry-dominant) and a later window (biology-dominant).
- Dose: treat dose as fit-for-purpose and project-dependent. Use a dose-response if donor artifacts are plausible.
What matters is not the exact numbers. It is that your dose/time choices have an interpretable rationale.
Replicates and batch balancing
Batch coupling is one of the most common "silent" failure modes in enriched PTM workflows.
Design rules that reduce batch-driven false positives:
- Every batch contains all four groups.
- Randomize within batch.
- Keep processing windows consistent across groups.
- Predefine outlier criteria and rerun policy.
If a group appears only in one batch, you no longer have biological replication. You have a batch confound.
Two practical additions that help in review:
- Define what "balanced" means: not just equal sample counts, but equal representation of groups across processing days, enrichment runs, and LC–MS sequences.
- Predefine variance rules: decide in advance what you will treat as technical versus biological variance. For example, if the donor effect appears only in one processing day, that is a stop-loss trigger—not a discovery.
A comparison map you can paste into Methods
When reviewers read Results, they look for a clean mapping between comparisons and claims. Spell it out.
- Primary contrast: donor effect within WT and within KO
- Specificity contrast: interaction (difference-in-differences)
- Context contrast: KO baseline vs WT baseline under vehicle
If you state these contrasts upfront, reviewers are less likely to accuse you of post hoc fishing.
Controls that make reviewers relax
Controls should be built around the reviewer's skepticism. The goal is to make it hard for reviewers to propose an alternative explanation.
A clean control stack:
- Background controls: define what "noise" looks like.
- Specificity controls: show signal depends on the intended chemistry.
- Analysis-anchoring controls: show how controls determine thresholds and comparisons.
Core negative controls (IgG/blank/process controls)
Which negative controls you use depends on your exact chemistry, but reviewers expect to see process-level background characterized.
Core options (choose those that match your workflow):
- Process blank: buffers/reagents taken through key steps.
- Bead/resin background: enrichment background.
- IgG control: if antibody capture is used.
- No-switch/no-reductant control: omit the key reduction/switch step so SNO-dependent signal collapses.
How to make these controls "reviewer-visible":
- Plot them in the same format as your main comparisons.
- Report them in the same table schema (even if the table is small).
- Use them to set a background filter (not just to "show you ran them").
KO as specificity evidence (when feasible)
A KO can be strong specificity evidence when it is mechanistically tied to SNO formation or removal. But it is not a free pass.
Two cautions reviewers will raise:
- KO changes protein abundance (confounds enriched signal).
- KO changes basal redox state (confounds cysteine chemistry broadly).
If you want KO to strengthen specificity, separate the story into two layers:
- Input/reference proteome (abundance context)
- SNO-enriched layer (modification signal)
Then require that your key "KO-specific" statements survive that layered interpretation.
How controls should appear in the report
Controls must be visible and mapped to analysis decisions.
Minimum best practice:
- Show negative control behavior in the main QC figure.
- State how control results set filtering thresholds.
- Ensure every key claim has at least one control-linked figure or table.
If you used a control to justify a decision, show it.
Artifact control: where false positives come from
Artifact control is the differentiator between "interesting list" and "defensible paper." In KO + donor designs, artifact risk comes from both handling and perturbation biology.
Sample handling artifacts
Handling artifacts often appear as condition differences because groups were processed at different times.
High-risk variables include:
- harvest-to-quench delays
- temperature drift
- light exposure
- metal-ion catalysis
- freeze–thaw cycles
Reviewer-facing mitigation is not "we were careful." It is auditable detail:
- define a time-to-quench window
- standardize temperature/light rules
- synchronize processing across groups
- record processing windows and batches
NO-donor related confounders
NO donors can change more than SNO. They can induce broad oxidative/nitrosative stress and shift multiple cysteine modifications.
Three confounder classes to plan for:
- Over-treatment: donor becomes a stress model rather than a probe.
- Secondary chemistry: global oxidation events shift cysteine reactivity.
- Non-specific nitrosation: chemistry masquerades as regulated in-cell SNO.
The design response is not to claim these confounders do not exist. It is to use the 2×2 structure and the interaction contrast to separate donor-global effects from genotype-dependent effects.
Stop-loss rules
Stop-loss rules are predeclared "pause criteria" that prevent you from scaling an artifact.
⚠️ Warning: If control behavior is wrong in a pilot, don't fix it with more samples.
Practical stop-loss triggers:
- no-switch/no-reductant control retains a large fraction of apparent signal
- replicates cluster by batch, not by biology
- one processing day generates most "hits"
- donor causes strong viability/stress shifts that dominate the biology
- signal is dominated by a few high-abundance proteins
When a stop-loss triggers, run a small screening set (balanced 2×2; limited dose/time points) before scaling.
How to document artifact control in Methods
Document artifact control as explicit constraints:
- handling windows
- temperature/light rules
- batch definition and balancing
- which negative controls were run and how they were used
Avoid vague phrases like "care was taken."
Data analysis plan: effect size + FDR anchored to controls
The analysis plan should mirror the experimental design. Reviewers want to see that you didn't choose comparisons after seeing the results.
A reviewer-friendly way to write the statistical plan is to treat it as a "contract" with two outputs per contrast:
- Effect size: how big is the change, and in which direction?
- Confidence: what is the BH-FDR after multiple testing?
In s-nitrosylation proteomics, that contract is only meaningful when controls are used to set background and filtering.
Filtering principles (contaminants/background)
Filtering should be anchored to controls and declared in Methods.
Common gates:
- remove contaminants/background
- apply a control-collapse filter (signal should drop in no-switch/no-reductant)
- require reproducibility across biological replicates
- separate protein abundance effects from SNO-layer effects when possible
Statistics transparency (effect size + BH-FDR)
Report effect sizes for each planned contrast:
- donor vs vehicle in WT
- donor vs vehicle in KO
- KO vs WT under vehicle
- interaction (difference-in-differences)
Then apply BH-FDR and report it in every results table.
This is the most reviewer-friendly combination: effect size tells you whether it matters; BH-FDR tells you whether to trust it.
Missingness and batch notes
Missingness can reflect biology, enrichment variability, or detection limits.
Be explicit:
- how missing values were handled
- whether missingness differs by group or batch
- whether imputation was used (and why)
A single sentence of batch transparency goes a long way:
All four groups were represented in each batch, and batch effects were assessed before differential testing.
Reporting package: reviewer-ready figures & tables
Design the reporting package as if a reviewer is trying to reproduce your reasoning from figures and tables alone.
A useful mindset: if your Results section were removed, could a reviewer still understand your study from the figure captions and table legends? If the answer is no, your package is not yet reviewer-ready.
Must-have figures:
- QC summary (replicate correlation, batch overview, negative controls)
- Control comparisons (donor effect in WT, donor effect in KO, interaction)
- Primary results plot (volcano or effect-size plot with thresholds stated)
Must-have tables:
- Sample & batch table (genotype, treatment, batch ID, processing window)
- Thresholds table (filters, BH-FDR, missingness handling)
- Results table (IDs, site localization fields if applicable, effect sizes, BH-FDR)
If you need acceptance-ready deliverables (common for CRO PMs), add a checklist:
- raw and processed files trace to sample IDs
- batch layout matches Methods
- control behavior is shown
- results tables include effect size and BH-FDR fields
When to escalate to orthogonal evidence
Escalate when the central claim demands it.
A helpful way to decide is to ask: "Could a reasonable reviewer accept this claim with only proteomics evidence?" If the claim is causal, mechanistic, or tied to a single site, the answer is usually no.
Common triggers:
- site-specific mechanistic claims
- strong donor-induced stress phenotype
- multiple redox PTMs could explain the observation
- paper conclusions rely on a small number of sites
A reviewer-friendly framing is to separate discovery and confirmation:
- discovery narrows to a shortlist
- orthogonal evidence confirms only the shortlist tied to the main claim
In practical terms, this is where your S-nitrosylation analysis stops being purely discovery and becomes claim-driven validation.
Service recommendation
If you share your KO design, donor plan, sample scale, and claim statement, we can help refine the control set, batch layout, artifact control checklist, and a reviewer-ready deliverables package.
Start from the PTMs proteomics services and the SNO overview (Proteomics Analysis of S-nitrosylation — set expectations for nitrosylation proteomics workflow deliverables).
Key takeaways
- Use a 2×2 KO × donor design so comparisons are interpretable.
- Put negative controls into main figures and anchor filtering to them.
- Treat donor stress and handling variability as first-class confounders.
- Report effect size plus BH-FDR for planned contrasts, including the interaction.
- Ship a reviewer-ready reporting package with QC, controls, and auditable tables.
References (papers only)
- Forrester et al., "Detection of Protein S-Nitrosylation with the Biotin Switch Technique" (2008, PMCID: PMC3120222)
- Wang et al., "An ascorbate-dependent artifact that interferes with the interpretation of the biotin switch assay" (2006, PubMed: 16863989)
- Benhar et al., "Nitrosative stress in the nervous system: guidelines for designing and interpreting experiments" (2016, PMCID: PMC4695327)
- Paige et al., "Identification of S-nitrosylation motifs by site-specific mapping" (2006, DOI: 10.1073/pnas.0600729103)
CAIMEI LI — Senior Scientist at Creative Proteomics
LinkedIn: caimei-li-42843b88
For research use only. Not for clinical diagnosis.
Related Articals
Our products and services are for research use only.
